Name: OMS OMT Low Speed High Torque Hydraulic Motor For Mini Excavator
Brand: BLINCE
SKU: OMS hydraulic motor

Home Products OMS Hydraulic Motor

OMS OMT Low Speed High Torque Hydraulic Motor For Mini Excavator

Product Details:

Place of Origin:	China
Brand Name:	BLINCE
Certification:	ISO9001:2008
Model Number:	OMS hydraulic motor

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton or wood case
Delivery Time:	15-20days
Payment Terms:	T/T, Western Union,L/C,Paypal
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Displacement:	80.6-475 Cc/rev	Power:	18.1kw
Warranty:	One Year	Color:	Black
Processing:	Forging & Cutting &phosphating	Output:	9-18.1kw
Market:	Globle
High Light:	danfoss hydro motor , danfoss oms motor

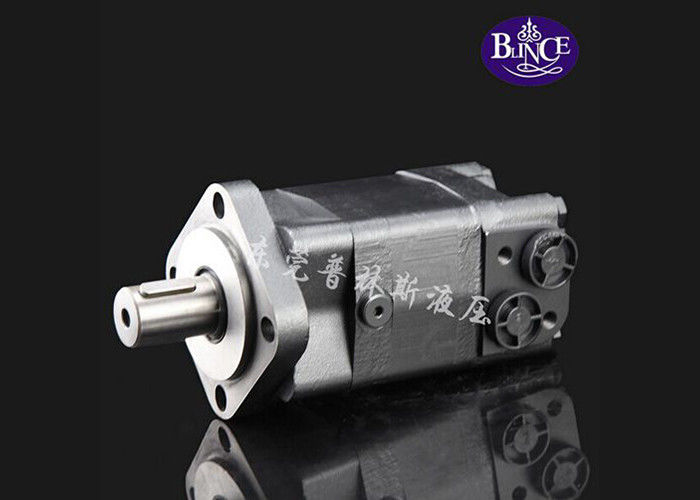

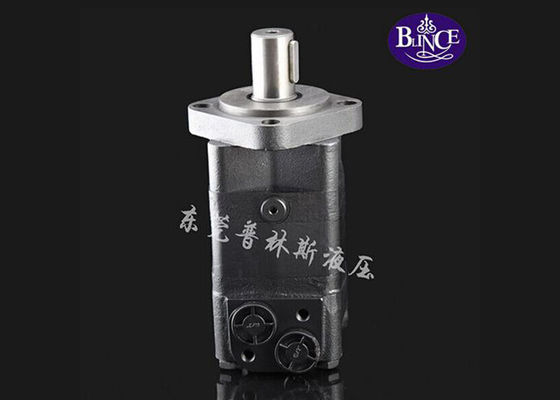

OMS OMT Low Speed High Torque Hydraulic Motor Excavator Travel Mini Motors

Orbit hydraulic motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.

Characteristic:
* Advanced manufacturing devices for the Getotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.

Type			OMSY 80	OMSY 100	OMSY 125	OMSY 160	OMSY 200	OMSY 250	OMSY 315	OMSY 400	OMSY 475
Displacement (cc/rev)			80.6	100.8	125	154	194	243	311	394	475
Max speed rate (rpm)	cont		800	748	600	470	375	300	240	185	155
	int		988	900	720	560	450	360	280	225	185
Max torque (N.m)	cont		225	290	365	485	586	708	880	880	910
	int		250	320	400	540	645	806	960	960	960
Max output (KW)	cont		16	18	18	18.1	18.1	18	17	11	9
	int		20	22	23	24	24	23.8	20.2	12	11
Max pressure Drop(Mpa)	cont		20.5	20.5	20.5	21	21	20	20	16	14
	int		22.5	22.5	22.5	22.5	22.5	22.5	22.5	17.5	15
Max.flow (L/min)		cont	65	75	75	75	75	75	75	75	75
		int	80	90	90	90	90	90	90	90	90
Weight(kg)			9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

OMS installation dimension:

OMS OMT Low Speed High Torque Hydraulic Motor For Mini Excavator

We are Manufacturing and selling Equivalent Replacement Of below Model in Danfoss Hydraulic Motor:
OMM Series Danfoss Hydraulic Motor
OMP Series Danfoss Hydraulic Motor
OMR Series Danfoss Hydraulic Motor
DH Series Danfoss Hydraulic Motor
DS Series Danfoss Hydraulic Motor
OMS Series Danfoss Hydraulic Motor
OMT Series Danfoss Hydraulic Motor
OMV Series Danfoss Hydraulic Motor
OMH Series Danfoss Hydraulic Motor

Tag:

danfoss hydro motor,

danfoss oms motor
