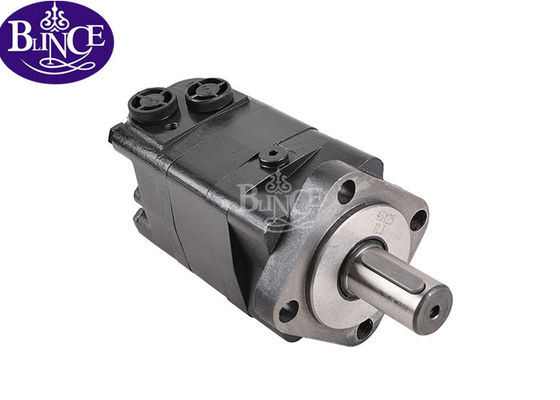

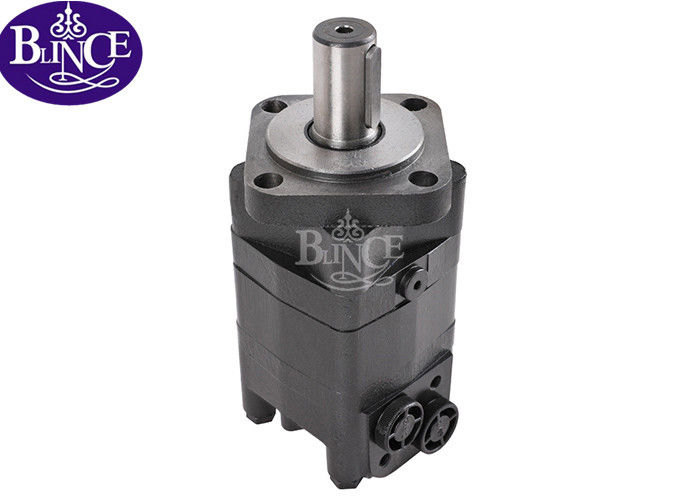

11.8 To 19.5kw Hydraulic Orbital Motor Danfoss OMS 160cc 200cc 250cc 315cc 400cc 475cc

11.8 To 19.5kw Hydraulic Orbital Motor Danfoss OMS 160cc 200cc 250cc 315cc 400cc 475cc

    • 11.8 To 19.5kw Hydraulic Orbital Motor Danfoss OMS 160cc 200cc 250cc 315cc 400cc 475cc
    • 11.8 To 19.5kw Hydraulic Orbital Motor Danfoss OMS 160cc 200cc 250cc 315cc 400cc 475cc
  • 11.8 To 19.5kw Hydraulic Orbital Motor Danfoss OMS 160cc 200cc 250cc 315cc 400cc 475cc

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMS hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Displacement: 80 To 375cc/rev Material: Cast Iron
    Speed: 200 To 800 Rpm Torque: 190 To 560 N.m
    Power: 11.8 To 19.5kw Warranty: One Year
    High Light:

    danfoss hydro motor

    ,

    danfoss oms motor

    Danfoss OMS 160cc 200cc 250cc 315cc 400cc 475cc Hydraulic Orbital Motor


    We have full devout in supplying the best quality OMS Hydraulic Motor. This is the low speed torque hydraulic motor that is widely demanded for low speed industrial applications of wide range of hydraulic fluids. This motor is available in high range of revolution rated displacement, which operates on optimum power outputs. Developed from qualitative range of components the offered motor can be ordered in varied technical specifications from us.

    Characteristic featutres:

    • Smooth running over the entire speed range
    • Constant operating torque over a wide speed range
    • Long life under extreme operating condition
    • High return pressure without the use of drain line (High pressure shaft seal)
    • High efficiency
    • High starting torque
    • Robust and compact design
    • High radial and axial bearing capacity
    • For applications in both open and closed loop hydraulic systems
    • Suitable for a wide variety of hydraulics fluids
    Type

    OMSY
    80

    OMSY
    100

    OMSY
    125

    OMSY
    160

    OMSY
    200

    OMSY
    250

    OMSY
    315

    OMSY
    400

    OMSY
    475

    Displacement
    (cc/rev)

    80.6100.8125154194243311394475

    Max speed rate (rpm)


    cont800748600470375300240185155
     int988900720560450360280225185

    Max torque
    (N.m)

    cont225290365485586708880880910
     int250320400540645806960960960

    Max output
    (KW)

    cont16181818.118.11817119
     int202223242423.820.21211

    Max pressure
    Drop(Mpa)

    cont20.520.520.5212120201614
     int22.522.522.522.522.522.522.517.515

    Max.flow
    (L/min)

    cont657575757575757575
     int809090909090909090
    Weight(kg)9.81010.310.711.111.612.313.214.3


     11.8 To 19.5kw Hydraulic Orbital Motor Danfoss OMS 160cc 200cc 250cc 315cc 400cc 475cc

    Please feel free to contact us if have any questions or inquiries.
    Thanks for choosing Blince Hydraulic.
