| Place of Origin: | China |
| Brand Name: | BLINCE |
| Model Number: | OMK6 hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 230-330usd/pc |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Displacement: | 195-985 Cc | Speed: | 152 To 765rpm |
|---|---|---|---|
| Torque: | 565 To 1675 N.m | Flow: | 150L/min |
| Shaft: | Cylindrical/splined | Warranty: | One Year |
| High Light: | geroler hydraulic motor,hydraulic gear motor |
||

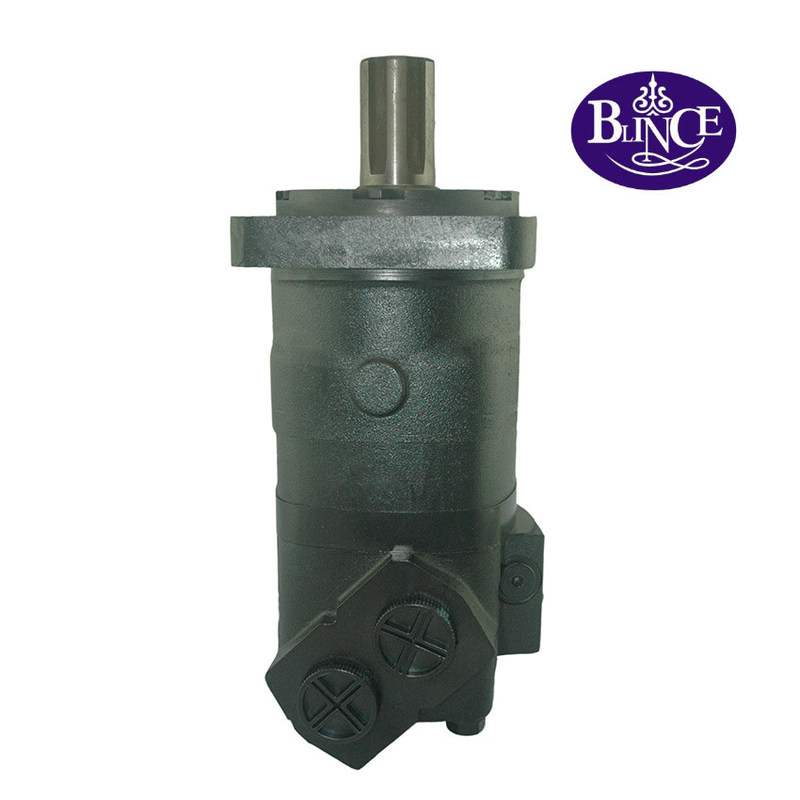

Blince Fishing Boat 6k 195 Gerotor Hydraulic Motor , Drilling Machine High Rpm Hydraulic 112-1094 6k 612-0131
OMK6 series motor adopt the advanced Geroler gear set designed with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
*Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces.
*Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
*Shaft seal can bear high pressure of back.
| Type | OMK6 200 |
OMK6 250 |
OMK6 315 |
OMK6 400 |
OMK6 500 |
OMK6 630 |
OMK6 800 |
OMK6 1000 |
|
| Geometric displacemen(cm3/rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
| Max.torque (N•m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max. pressure drop(MPa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max. flow (L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
