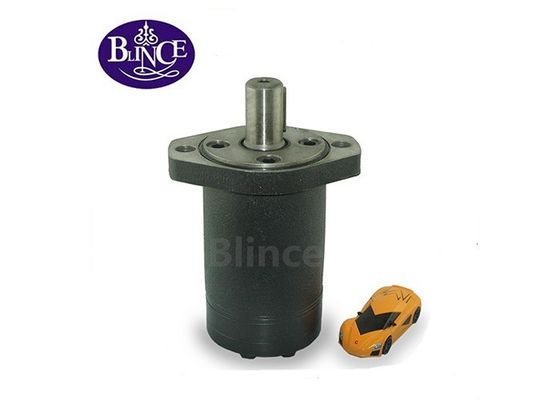

High Speed Small Hydraulic motor OMPH 36cc 50cc Replace Eaton H Series 1011512 1011700

High Speed Small Hydraulic motor OMPH 36cc 50cc Replace Eaton H Series 1011512 1011700

    • High Speed Small Hydraulic motor OMPH 36cc 50cc Replace Eaton H Series 1011512 1011700
    • High Speed Small Hydraulic motor OMPH 36cc 50cc Replace Eaton H Series 1011512 1011700
  • High Speed Small Hydraulic motor OMPH 36cc 50cc Replace Eaton H Series 1011512 1011700

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMPH 36 50 hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Max Pressure: 140bar Cont Speed: 120-1500rpm
    Displacement: 36-486.5cc/rev Output: 6.0-11.0kw
    Material: Cast Iron Cont Torque: 55-430N.m
    Warranty: One Year Color: Black
    High Light:

    geroler hydraulic motor

    ,

    small hydraulic motors

    High Speed Small Hydraulic motor OMPH 36cc 50cc Replace Eaton

    H Series 1011512 1011700 Motor



    OMPH /BMPH series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.



    It is equivalent with Eaton Char-lynn 101 H series gerotor hydraulic motor.



    Geometric displacement: 36cc, 50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 400cc, 500cc.

    Flange: two bolts/ four bolts rhomb flange, four bolts square flange.



    Characteristic:

    1. Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

    2. At seal can bear high pressure of back and the motor can be used in parallel or in series.

    3. Eial design in the driver-linker and prolong operating life.

    4. Eial design for distribution system can meet the requirement of low noise of unit.



    type

    OMP

    OMPH

    36

    OMP

    OMPH

    50

    OMP

    OMPH

    80

    OMP

    OMPH

    100

    OMP

    OMPH

    125

    OMP

    OMPH

    160

    OMP

    OMPH

    200

    OMP

    OMPH

    250

    OMP

    OMPH

    315

    OMP

    OMPH

    400

    OMP

    OMPH

    500

    Geometric displacement 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
    Max.speed.(rpm) con. 1500 1150 770 615 490 383 310 250 192 155 120
      int. 1650 1450 960 770 615 475 385 310 240 190 150
    Max.torque(N.m cont. 55 100 146 182 236 302 360 383 375 360 385
      int. 76 128 186 227 290 370 440 460 555 525 560
    Max.output(KW) cont. 8.0 10.0 10.0 11.0 10.0 10.0 10.0 8.5 7.0 6.0 5.0
      int 11.5 12.0 12.0 13.0 12.0 12.0 12.0 10.5 8.5 7.0 6.0

    Max.pressure

    Drop(Mpa)

    cont. 12.5 14 14 14 14 14 14 11 9 7 6
      int 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
    Max.flow(L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
      int. 60 75 75 75 75 75 75 75 75 75 75



    High Speed Small Hydraulic motor OMPH 36cc 50cc Replace Eaton H Series 1011512 1011700
