| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMR hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union, L/C,Paypal |
| Supply Ability: | 3000pcs/month |
| Max Torque: | 72-365 N.m | Material: | Cast Iron |
|---|---|---|---|
| Model No: | OMR36/50/80/100/125/160/200/250/315/375 | Max Pressure: | 7.0-17.5Mpa |
| Colour: | Gray And Black | Trademark: | Blince |
| HS Code: | 8412291000 | ||
| High Light: | omr motor,orbit hydraulic motor |
||

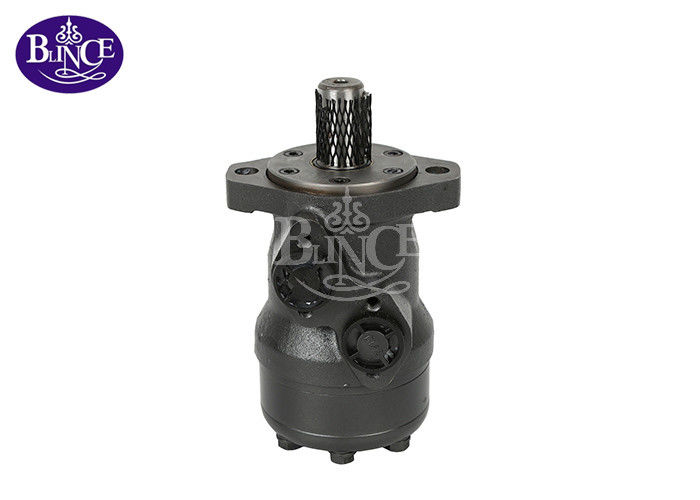

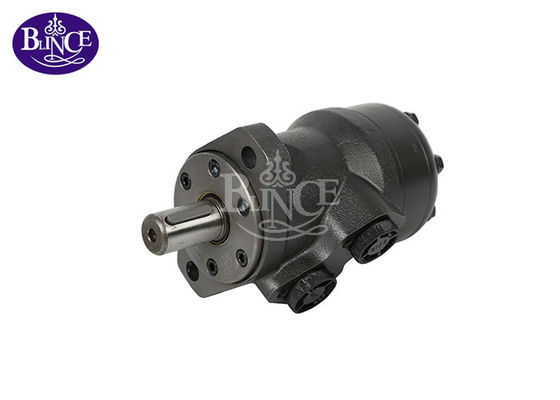

Hydraulic Swing Motor OMR Geroler Hydraulic Motor For Fishing Vessels
OMR Characteristics:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide
smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
* Special design in the driver-linker and prolong operating life.
| Type |
OMR 36 |
OMR 50 |
OMR 80 |
OMR 100 |
OMR 125 |
OMR 160 |
OMR 200 |
OMR 250 |
OMR 315 |
OMR 375 |
||
| Displacement (cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | ||
|
Max speed rate (rpm)
|
cont | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 | |
| int | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | ||
|
Max torque (N.m) |
cont | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 | |
| int | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | ||
|
Max output (KW) |
cont | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10.0 | 7.0 | 6.0 | 5.0 | |
| int | 9.8 | 11.2 | 15.0 | 15.0 | 14.5 | 14.0 | 13.0 | 9.5 | 9.0 | 8.0 | ||
|
Max pressure Drop(Mpa) |
cont | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 | |
| int | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | ||
|
Max.flow (L/min) |
cont | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | ||
| Weight(kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 | ||
OMR shaft mounting type:
