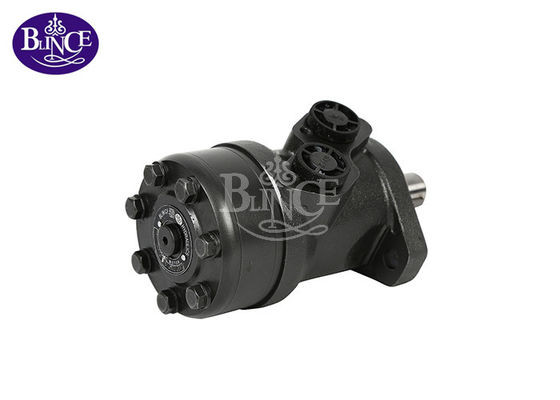

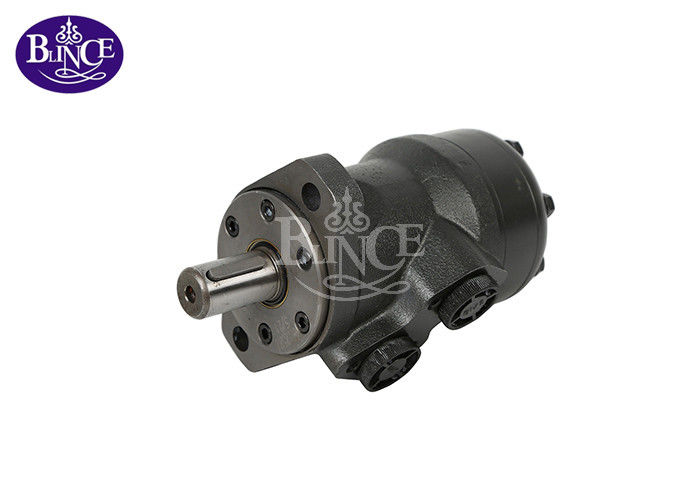

Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included

Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included

    • Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included
    • Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included
  • Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMR/ BMR 375cc hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union, L/C,Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Model No: OMR/BMR375 Type: Gerotor / Orbit Motor
    Application: Construction Machine, Agriculture Machine Motor Shaft: Straight, Splined And Tapered
    Torque: 365N.m Flow: 60L
    Output: 8.0kw
    High Light:

    omr motor

    ,

    orbit hydraulic motor

    Eaton Hydraulic Motor For Mixer omr 375cc With High Preesure Oil Seal



    Blince BMR Features:

    This motor incorporate the latest advances for smooth performance, efficiency and durability. Featuring an optimized Geroler geometry with seven precision rollers to eliminate sliding friction and provide rolling contact between the rotor and stator, thus increasing motor efficiency. A three-zone spool valve, integral check valves and a provision for a case drain reduce pressure on internal seals to improve product life.



    We are specialized manufacturer of orbital hydraulic motor. We can provide more than 2000 kinds of motor with different models and technical parameters: the rated displacement from 50mm to 1600cc, Max. torque from 50N.m to 3300N.m, Max. output power from 2 KW to 90 KW, which has provided wide choice to meet customer's needs. Meanwhile, Our products manufactured can be completely interchanged with SAUER DANFOSS OMP, OMR, OMH, OMS, OMT AND OMV series.



    Type

    OMR

    36

    OMR

    50

    OMR

    80

    OMR

    100

    OMR

    125

    OMR

    160

    OMR

    200

    OMR

    250

    OMR

    315

    OMR

    375

    Displacement (cc/rev) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4

    Max speed

    rate (rpm)



    cont 1085 960 750 600 475 378 310 240 190 155
      int 1220 1150 940 750 600 475 385 300 240 190

    Max torque

    (N.m)

    cont 72 100 195 240 300 360 360 390 390 365
      int 83 126 220 280 340 430 440 490 535 495

    Max output

    (KW)

    cont 8.5 9.5 12.5 13.0 12.5 12.5 10.0 7.0 6.0 5.0
      int 9.8 11.2 15.0 15.0 14.5 14.0 13.0 9.5 9.0 8.0

    Max pressure

    Drop(Mpa)

    cont 14.0 14 17.5 17.5 17.5 16.5 13 11 9 7
      int 16.5 17.5 20 20 20 20 17.5 15 13 10

    Max.flow

    (L/min)

    cont 40 50 60 60 60 60 60 60 60 60
      int. 45 60 75 75 75 75 75 75 75 75
    Weight(kg) 6.5 6.7 6.9 7 7.3 7.6 8.0 8.5 9.0 9.5



    OMR shaft mounting type:



    Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included

    OMR flange type mounting:



    Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included

    Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included

    Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included



    Mixer Omr 375cc Eaton Hydraulic Motor High Preesure Oil Seal Included



    OMR hydraulic motors are widely applied in agriculture machinery,fishing machinery,plastic industry,mining,and construction machinery, especially fitted to lower load applications,such as plastic injection mold machine,cleaner,grass cutter,etc.



    The Shopping Note:

    1.Take this page for reference and select product number in the following. For features that are not indicated in this page, please contact us.
    2.If the product has quality problems, we can solve the problems.
    3.If you have some questions about the installation of the product, please contact us.
