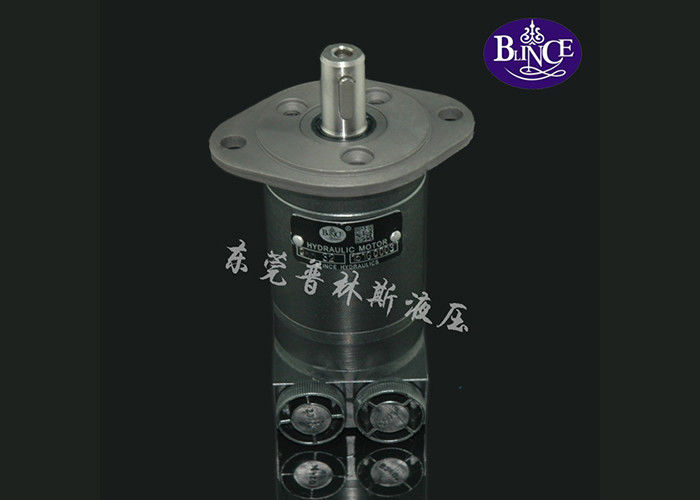

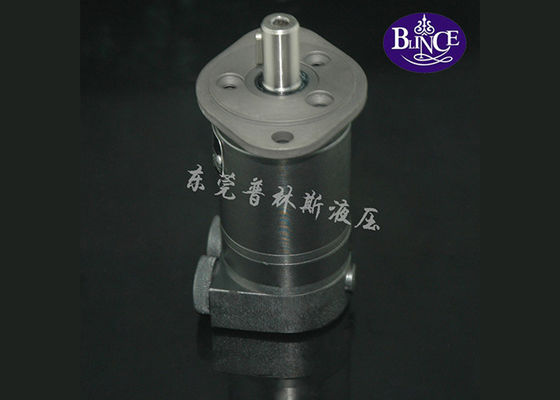

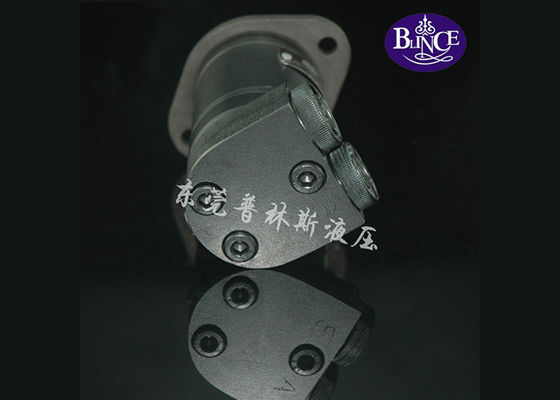

Name: High pressure Blince Hydraulic Motor OMM12.5-MAE Replace Eaton J Series (129 -)
Brand: BLINCE
SKU: BMM 12.5 / OMM 12.5

Home Products OMM Hydraulic Motor

High pressure Blince Hydraulic Motor OMM12.5-MAE Replace Eaton J Series (129 -)

Product Details:

Place of Origin:	China
Brand Name:	BLINCE
Certification:	ISO9001:2008
Model Number:	BMM 12.5 / OMM 12.5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton Packing or wooden box
Delivery Time:	10-20 working days
Payment Terms:	Western Union, T/T, paypal, , L/C
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Pressure:	High Pressure	Output Power:	Cont 1.8kw
Appearance:	Phosphating & Painting	Displacement Range:	12.9cc/rev
Material:	Cast Iron	Warranty:	One Year
Application:	Polishing Machine Etc.
High Light:	danfoss omm , omm motor

Blince Hydraulic Motor Price OMM12.5-MAE Replace Eaton J Series (129 -)

Blince orbit Hydraulic motor OMM

OMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt

the Gerotor gear set design and provide compact volume, high power and low weigth.

Characteristic features:
* Advanced manufacturing devices for the gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.

Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series
Type		OMM 8	OMM 12.5	OMM 20	OMM 32	OMM 40	OMM 50
Geometric displacement		8.2	12.9	19.9	31.6	39.8	50.3
Max.speed (rpm)	cont.	1950	1550	1000	630	500	400
Max.speed (rpm)	int.	2450	1940	1250	800	630	500
Max.torque(N.m)	cont.	11	16	25	40	45	46
Max.torque(N.m)	int.	15	23	35	57	70	88
Max.output(KW)	cont.	1.8	2.4	2.4	2.4	2.2	1.8
Max.output(KW)	Int.	2.6	3.2	3.2	3.2	3.2	3.2
Max.pressure Drop (Mpa)	cont.	10	10	10	10	9	7
Max.pressure Drop (Mpa)	int.	14	14	14	14	14	14
Max.flow(L/min)	cont.	16	20	20	20	20	20
Max.flow(L/min)	int.	20	25	25	25	25	25
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4

High pressure Blince Hydraulic Motor OMM12.5-MAE Replace Eaton J Series (129 -)

Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.

Please feel free to contact us if have any questions or inquiries.

Thanks for choosing Blince Hydraulic.
