Home ProductsOMM Hydraulic Motor

Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply

Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply

    • Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply
    • Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply
    • Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply
  • Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMM / BMM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton Packing or wooden box
    Delivery Time: 10-20 working days
    Payment Terms: Western Union, T/T, paypal,
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Max Speed: Cont 1950rpm Pressure: 7-10Mpa
    Flow: Cont 16-20 L/min Appearance: Phosphating & Painting
    Displacement Range: 8.2-50.3 Cc/rev
    High Light:

    danfoss omm

    ,

    micro hydraulic motor

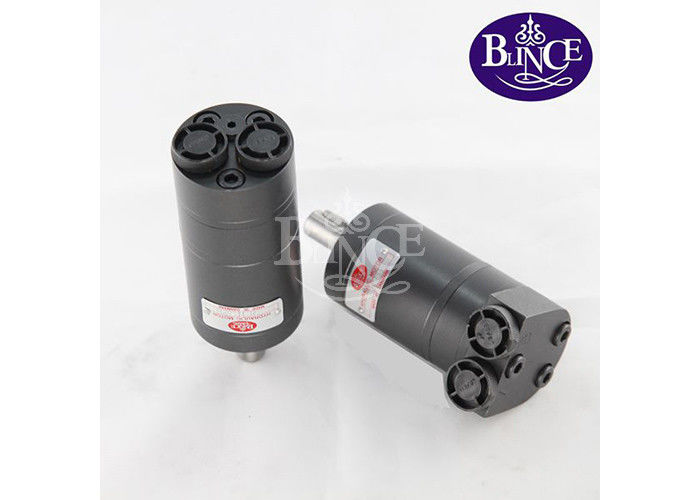

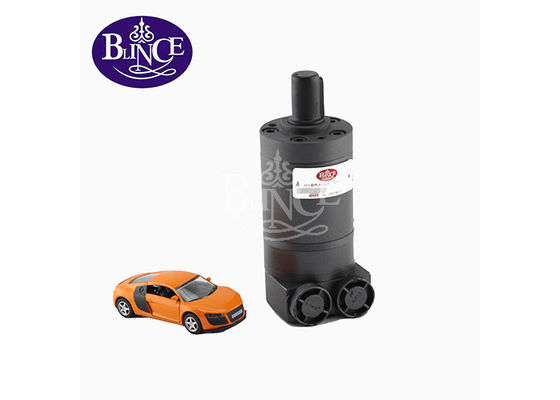

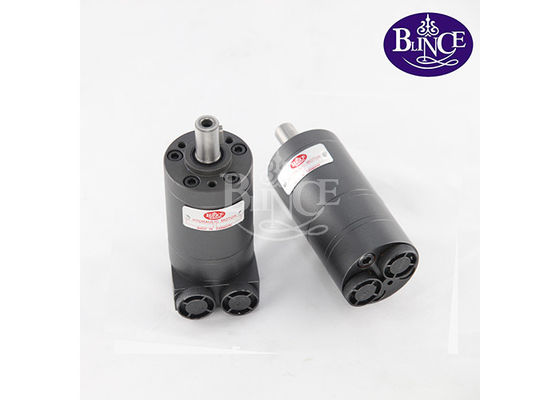

    Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor For Borehole Drilling Rig



    OMM series motor are small volume, economical type, which is designed with shaft distribution flow, which

    adapt the Gerotor gear set design and provide compact volume, high power and low weigth.



    Characteristic features:

    * Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.

    * Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

    * Advanced construction design, high power and low weight.



    Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.



    Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series
    Type

    OMM

    8

    OMM

    12.5

    OMM

    20

    OMM

    32

    OMM

    40

    OMM

    50

    Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3
    Max.speed (rpm) cont. 1950 1550 1000 630 500 400
    int. 2450 1940 1250 800 630 500
    Max.torque(N.m) cont. 11 16 25 40 45 46
    int. 15 23 35 57 70 88
    Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8
    Int. 2.6 3.2 3.2 3.2 3.2 3.2

    Max.pressure

    Drop (Mpa)

    cont. 10 10 10 10 9 7
    int. 14 14 14 14 14 14
    Max.flow(L/min) cont. 16 20 20 20 20 20
    int. 20 25 25 25 25 25
    Weight(kg) 1.9 2 2.1 2.2 2.3 2.4







    Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supplyHydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply



    Hydraulic Engine BMM / OMM Gerotor Hydraulic Motor Borehole Drilling Rig supply



    Please do not hesitate to contact us for further information, inquiries or orders.
    Thank you for choosing Blince Hydraulic.
