| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | SGP/HGP gear pump |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Displacement: | 19-36 | Pressure: | 25Mpa |
|---|---|---|---|
| Speed: | 3000rpm | Warranty: | One Year |
| Color: | Grey | Material: | Cast Iron |
| Name: | SGP2A-F Gear Pump | ||
| High Light: | hydraulic gear oil pump,cast iron hydraulic gear pump |
||

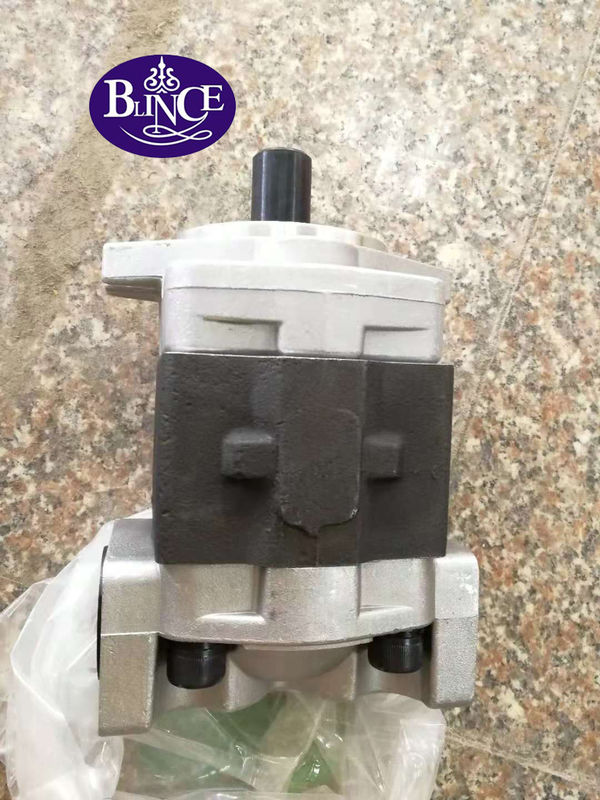

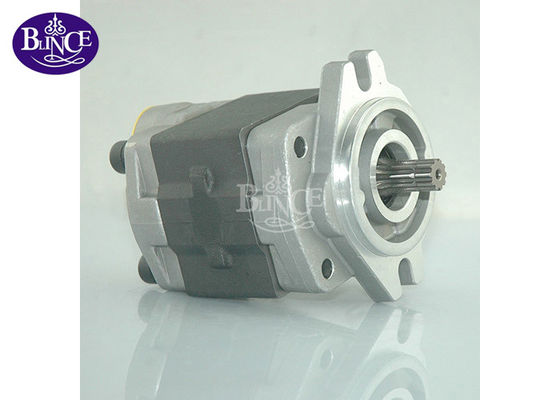

Blince SGP2A-F Gear Pump For Forklift / Crane Heavy Duty Gear Pump Price
SGP2 series gear pump is external gear pump possessing axial clearance automatic compensation and radial hrdraulic balance, adopting three opening structure. The bearings are DU bearings and the side plate is bimetallic material. The front and rear covers, are made of aluminum accessory with high strength. The middle part is consist of iron casting and the surface is covered with metal ceramic. All above improve the performance, lifetime and reliability of the pump.
Main features:
1. High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency.
2. Long service life: high performance, high abrasion resistance, bearings in high voltage, high speed occasions running, not burned.
3. Light weight, compact structure, body aluminum alloy, high precision molding design, low noise.
4. Suitable for a wide range of civil construction machinery, industrial vehicles, handling machinery, agriculture and forestry, fishery machinery and industrial automation and other devices.
| Model |
Nominal displacement (ml/r) |
Pressure(Mpa) | Rotation speed(r/min) | Volumetric efficiency | L | Weight(kg) | |||
| Rated | Max | Min | Rated | Max | |||||
| SGP1-19 | 19 | 20 | 25 | 600 | 2500 | 3000 | 92 | 115.5 | 4.1 |
| SGP1-23 | 23 | 118.5 | 4.3 | ||||||
| SGP1-25 | 25 | 122.5 | 4.6 | ||||||
| SGP1-27 | 27 | 124.5 | 4.8 | ||||||
| SGP1-30 | 30 | 126.5 | 5.0 | ||||||
| SGP1-32 | 32 | 131.5 | 5.4 | ||||||
| SGP1-36 | 36 | 130.5 | 5.8 | ||||||
Features:
1. Minimum noise
2. No leakage
3. Energy efficient
4. Flawless hydraulic operations
5. Longer functional life
6. Easy to install
