Place of Origin: | China |
Brand Name: | BLINCE |
Certification: | ISO9001:2008 |
Model Number: | OMT hydraulic motor |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton or wood case |
Delivery Time: | 15-20days |
Payment Terms: | T/T, Western Union, L/C,Paypal |
Supply Ability: | 3000pcs/month |
Max Inlet Pressure: | 21Mpa | Color: | Black |
---|---|---|---|
Usage: | Hydraulic | Application: | Construction / Agriculture Machinery |
Characteristics: | Long Life & High Efficiency | Displacement: | 523.6ml/rev |
L (mm): | 201 | ||
High Light: | omt motor,hydraulic pump motor |

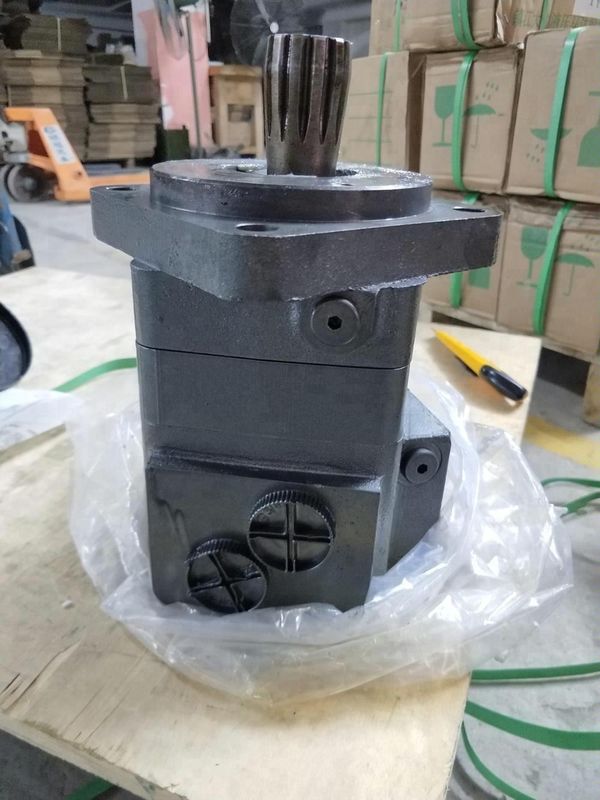

Combine Harvester OMT BM4 500cc Hydraulic Orbit Motor For Agricultural Machine
Blince BMT315, BMT400, BMT500, BMT630, BMT800 orbit hydraulic motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Features:
1.Compact in design with disc valving and Geroler.
2.High pressure capacity shaft seal.
3.Design and manufacture of the spline and drives give the motor durability.
4.Wide variety of mounting flanges, shafts, ports and speed provides design flexibility .
5.Direction of shaft rotation and speed can be controlled easily and smoothly.
6.Best combination of high efficiency and economy in medium duty applications.
Applications : Hydraulic motors are ideally suited for Applications demanding vary high Torque at low or variable speeds, along with economy, compact size, reliability, maintenance-free service etc. These motors also provide a cost effective alternative to many other variable speed drives in vogue.
Type |
OMT 160 |
OMT 200 |
OMT 230 |
OMT 250 |
OMT 315 |
OMT 400 |
OMT500 |
OMT 630 |
OMT 800 |
|
Displacement (cc/rev) |
161.1
|
201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
Max torque (n.m) |
cont | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
int | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
Max pressure (Mpa) |
cont | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
int | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
Max speed ) | cont | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
int | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
Max flow (L/min) |
cont | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
int | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
Weight(kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 |
This motor series offers the perfect compromise between price and performance by producing work horse power at a reasonable cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow, high pressure applications.
