Place of Origin: | China |
Brand Name: | BLINCE |
Certification: | ISO9001:2008 |
Model Number: | OMS /BMS / EPMS hydraulic motor |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton or wood case |
Delivery Time: | 15-20days |
Payment Terms: | T/T, Western Union,L/C,Paypal |
Supply Ability: | 3000pcs/month |
Processing: | Forging & Cutting &phosphating | Market: | Globle |
---|---|---|---|
Material: | Cast Iron | Waranty: | 1 Year |
Usage: | Hydraulic Oil | Apperance: | Phosphating |
Max Torque: | 910 N.m | ||
High Light: | oms motors,danfoss oms motor |

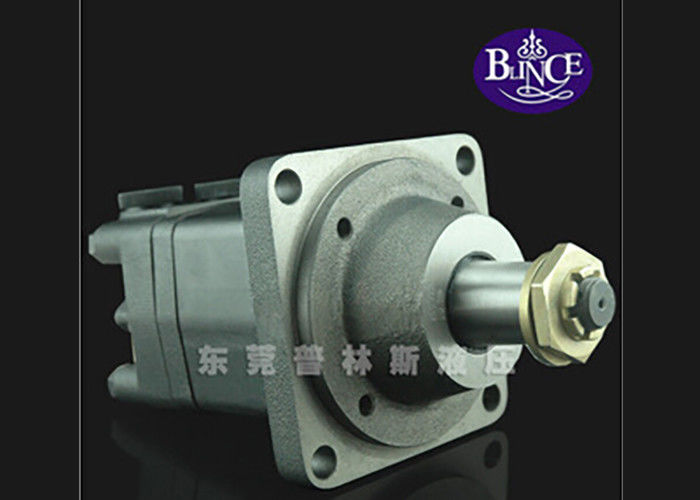

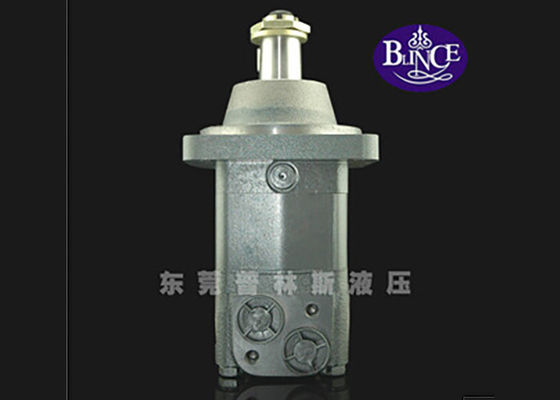

Hydraulic Oil motor BMS OMS EPMS Heavy Duty Orbit Motor For Rock Drills
OMS motors are completely interchangeable with genuine Danfoss OMS series hydraulic motor
Features:
1. Advanced design in disc distribution flow, which can provide improved performance at low speed.
2. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
3. Double-rolling bearing design, which permit higher radial loads.
4. Avariety of connection types of flange, output shaft and oil port.
2K, 2000 Series; 4K, 4000 series; 6K, 6000 Series; 8K 8000 series Char-lynn Motor
Type |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
||
Displacement |
80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | ||
Max speed rate (rpm) |
cont | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
int | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | ||
Max torque |
cont | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
int | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | ||
Max output |
cont | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 | |
int | 20 | 22 | 23 | 24 | 24 | 23.8 | 20.2 | 12 | 11 | ||
Max pressure |
cont | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 | |
int | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | ||
Max.flow |
cont | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
int | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 |
OMS installation dimension:
Contact us and get more information, we will help you to get your best choice.
