Place of Origin: | China |
Brand Name: | BLINCE |
Certification: | ISO9001:2008 |
Model Number: | OMS hydraulic motor |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton or wood case |
Delivery Time: | 15-20days |
Payment Terms: | T/T, Western Union,L/C,Paypal |
Supply Ability: | 3000pcs/month |
Processing: | Forging & Cutting &phosphating | Market: | Globle |
---|---|---|---|
Motor Operate: | With Electrical Machine/pump /cyclinder/valve | Material: | Cast Iron |
Waranty: | 1 Year | Usage: | Hydraulic Oil |
Color: | Black | ||
High Light: | oms motors,danfoss oms motor |

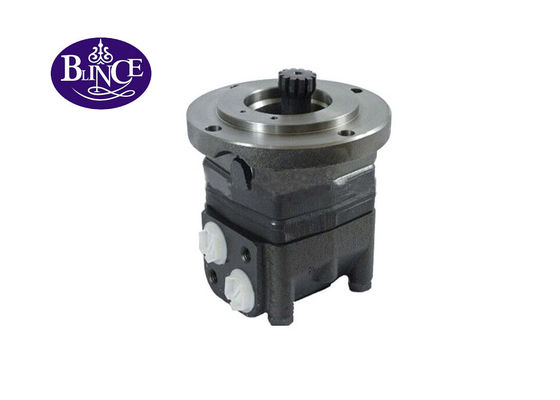

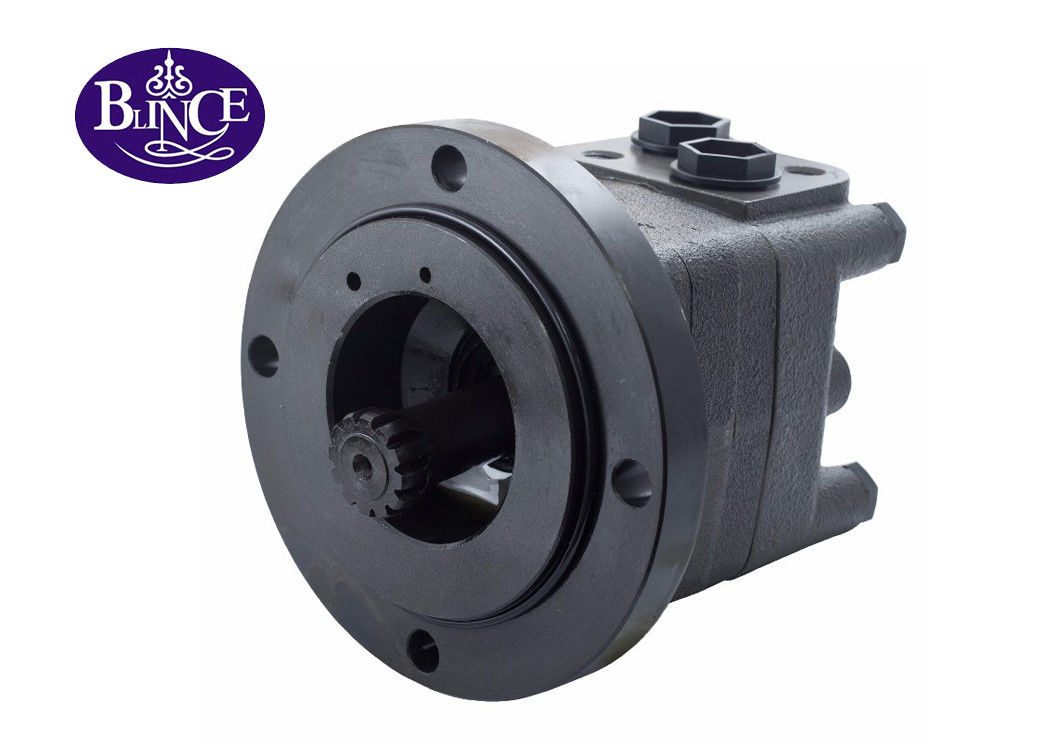

High Quality OMS250 OMS315 OMS400 OMS475 Hydraulic
Disc Valve Geroler Motor for Marine Machine
OMS motors are completely interchangeable with genuine Danfoss OMS series hydraulic motor
Main Features:
1. Output shaft with tapered roller bearings gives high static and dynamic bearing capacity
2. Gear rim with rollers, separate valve drive and disc valve
3. High volumetric and mechanical efficiency
4. Long operating life at high pressures
5. Packing: 25 or 50 small box in a big box with pallet
6. Displacement for choose: 50, 63, 80, 100, 125, 160, 200, 250, 305, 37 and 395cc
2K series motor are comletely interchangeable with Char-lynn motors 2000 series hydraulic motor; Replacement 4000, 6000, 8000 series Charlynn motor are available in our company.
Type |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
||
Displacement |
80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | ||
Max speed rate (rpm) |
cont | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
int | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | ||
Max torque |
cont | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
int | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | ||
Max output |
cont | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 | |
int | 20 | 22 | 23 | 24 | 24 | 23.8 | 20.2 | 12 | 11 | ||
Max pressure |
cont | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 | |
int | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | ||
Max.flow |
cont | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
int | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 |
OMS installation dimension:
Contact us and get more information, we will help you to get your best choice.
