| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | BMM 8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing or wooden box |
| Delivery Time: | 10-20 working days |
| Payment Terms: | Western Union, T/T, paypal, , L/C |
| Supply Ability: | 3000pcs/month |
| Type: | OMM Hydraulic Motor | Max Speed: | Cont 1950rpm |
|---|---|---|---|
| Pressure: | 10Mpa | Material: | Cast Iron |
| Displacement Range: | 8.2cc/rev | Output Power: | Cont1.8kw |
| Motor Flange: | Circle / Diamond Flange | ||
| High Light: | omm motor,micro hydraulic motor |
||

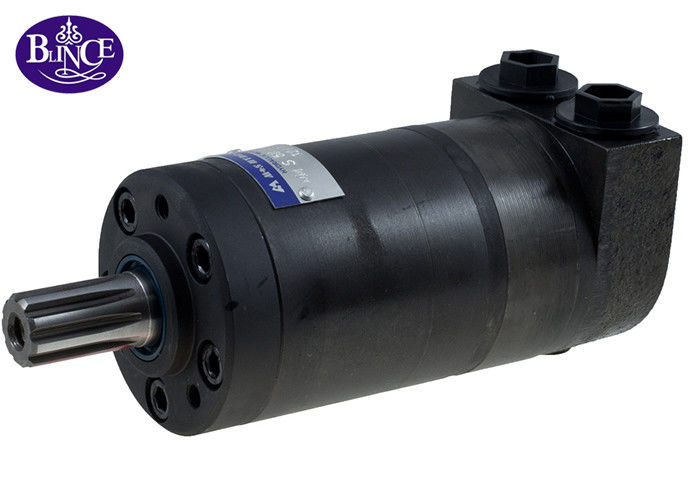

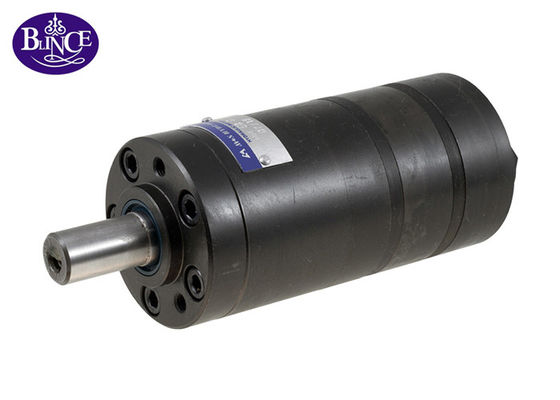

Hydraulic Motor 1500rpm Small Hydraulic Motor 151G0049 Hydraulic System Motor
OMM series motor are small volume,economical type,which is designed with shaft distritubion flow, which adapt the Gerotor gear set design and provide compact volume,high power and low weight, widely used in agriculture, forestry, plastics, machine tools and mine machines, etc.
UNIQUE FEATURE
1. small volume to easy installation
2. high speed max 1950 rpm
3. freely disassemble leakage
4. Shaft seal can bear high pressure
| Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
| Type |
OMM 8 |
OMM 12.5 |
OMM 20 |
OMM 32 |
OMM 40 |
OMM 50 |
|
| Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max.pressure Drop (Mpa) |
cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
Email: sales@blince.com
