BMSY OMSY Slow Speed Hydraulic Motors / Hydraulic Boat Motor One Year Warranty

Product Details:

Place of Origin:	China
Brand Name:	BLINCE
Certification:	ISO9001:2008
Model Number:	OMS hydraulic motor

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton or wood case
Delivery Time:	15-20days
Payment Terms:	T/T, Western Union
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Displacement:	80 To 375cc/rev	Material:	Cast Iron
Speed:	200 To 800 Rpm	Torque:	190 To 560 N.m
Power:	11.8 To 19.5kw	Warranty:	One Year
High Light:	oms motors , danfoss oms motor

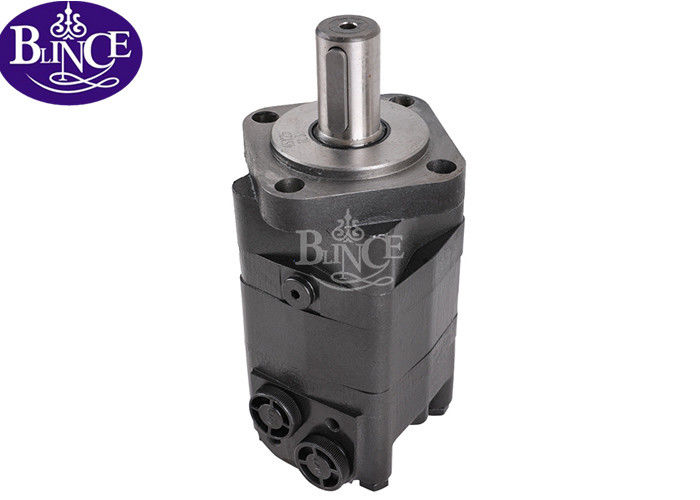

Hydraulic Boat Motor BMSY OMSY Slow Speed Hydraulic Motors

OMS series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.
The unit can be supplied the individual variant in operating multifunction in accordance with requirement of
applications.

Characteristic featutres:

Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating condition
High return pressure without the use of drain line (High pressure shaft seal)
High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids

Type			OMSY 80	OMSY 100	OMSY 125	OMSY 160	OMSY 200	OMSY 250	OMSY 315	OMSY 400	OMSY 475
Displacement (cc/rev)			80.6	100.8	125	154	194	243	311	394	475
Max speed rate (rpm)	cont		800	748	600	470	375	300	240	185	155
	int		988	900	720	560	450	360	280	225	185
Max torque (N.m)	cont		225	290	365	485	586	708	880	880	910
	int		250	320	400	540	645	806	960	960	960
Max output (KW)	cont		16	18	18	18.1	18.1	18	17	11	9
	int		20	22	23	24	24	23.8	20.2	12	11
Max pressure Drop(Mpa)	cont		20.5	20.5	20.5	21	21	20	20	16	14
	int		22.5	22.5	22.5	22.5	22.5	22.5	22.5	17.5	15
Max.flow (L/min)		cont	65	75	75	75	75	75	75	75	75
		int	80	90	90	90	90	90	90	90	90
Weight(kg)			9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

BMSY OMSY Slow Speed Hydraulic Motors / Hydraulic Boat Motor One Year Warranty

Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
