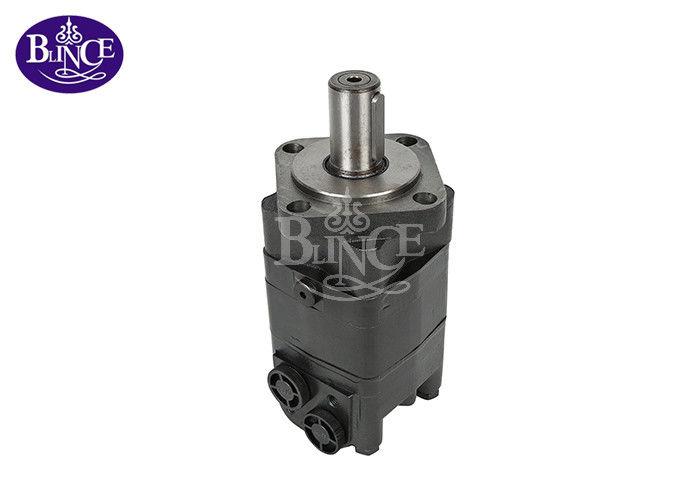

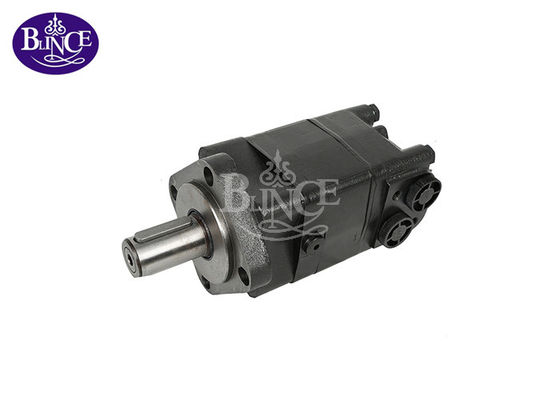

Orbit Oms 200 Hydraulic Motor Replace Sauer 151F0504 151F0505 Fit Sugar Cane Harvester

Orbit Oms 200 Hydraulic Motor Replace Sauer 151F0504 151F0505 Fit Sugar Cane Harvester

    • Orbit Oms 200 Hydraulic Motor Replace Sauer 151F0504 151F0505 Fit Sugar Cane Harvester
    • Orbit Oms 200 Hydraulic Motor Replace Sauer 151F0504 151F0505 Fit Sugar Cane Harvester
  • Orbit Oms 200 Hydraulic Motor Replace Sauer 151F0504 151F0505 Fit Sugar Cane Harvester

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMS /BMS / EPMS hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union,L/C,Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Processing: Forging & Cutting &phosphating Material: Cast Iron
    Waranty: 1 Year Usage: Hydraulic Oil
    Apperance: Phosphating Inlet Pressure: 230bar
    Displacement: 194cc/rev
    High Light:

    danfoss hydro motor

    ,

    danfoss oms motor

    OMS 200 Orbit Motor Replace Sauer 151F0504 151F0505 For Sugar Cane Harvester



    The OMS/2000/2K/BM5 series orbit hydraulic motor produced by JINJIA is one disc valve type gerolor motor,Advanced design of disc distribution flow, which can provide improved performance at low speed higher volumetric for the automaticalty compensate wear.

    Double taper roller bearings permit high radial loads, can be used on heavy vehicles/machinery in traction drive applications



    OMS/2000/2K/HMS/BM5 series orbital hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.



    The OMS/2000/2K/HMS/BM5 series orbit hydraulic motors can perfectly replace the following models:

    Danfoss:OMS80,OMS100,OMS125,OMS160,OMS200,OMS250,ORS315,OMS400…etc.

    Eaton:2K-80,2K-160,2K-195,2K-245,2K-305,2K-395…etc.





    Type

    OMSY
    80

    OMSY
    100

    OMSY
    125

    OMSY
    160

    OMSY
    200

    OMSY
    250

    OMSY
    315

    OMSY
    400

    OMSY
    475

    Displacement
    (cc/rev)

    80.6 100.8 125 154 194 243 311 394 475

    Max speed rate (rpm)


    cont 800 748 600 470 375 300 240 185 155
      int 988 900 720 560 450 360 280 225 185

    Max torque
    (N.m)

    cont 225 290 365 485 586 708 880 880 910
      int 250 320 400 540 645 806 960 960 960

    Max output
    (KW)

    cont 16 18 18 18.1 18.1 18 17 11 9
      int 20 22 23 24 24 23.8 20.2 12 11

    Max pressure
    Drop(Mpa)

    cont 20.5 20.5 20.5 21 21 20 20 16 14
      int 22.5 22.5 22.5 22.5 22.5 22.5 22.5 17.5 15

    Max.flow
    (L/min)

    cont 65 75 75 75 75 75 75 75 75
      int 80 90 90 90 90 90 90 90 90
    Weight(kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 13.2 14.3



    OMS installation dimension:

    Orbit Oms 200 Hydraulic Motor Replace Sauer 151F0504 151F0505 Fit Sugar Cane Harvester



    Contact us and get more information, we will help you to get your best choice.
