| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMS /BMS / EPMS hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union,L/C,Paypal |
| Supply Ability: | 3000pcs/month |
| Processing: | Forging & Cutting &phosphating | Material: | Cast Iron |
|---|---|---|---|
| Waranty: | 1 Year | Usage: | Hydraulic Oil |
| Apperance: | Phosphating | Delivery Time: | 10-20days |
| Flange: | Rhomb Flange/ Square Flange/ Wheel Flange | Shaft: | Straight/ Splined/ Tapered |
| High Light: | oms motors,danfoss oms motor |
||

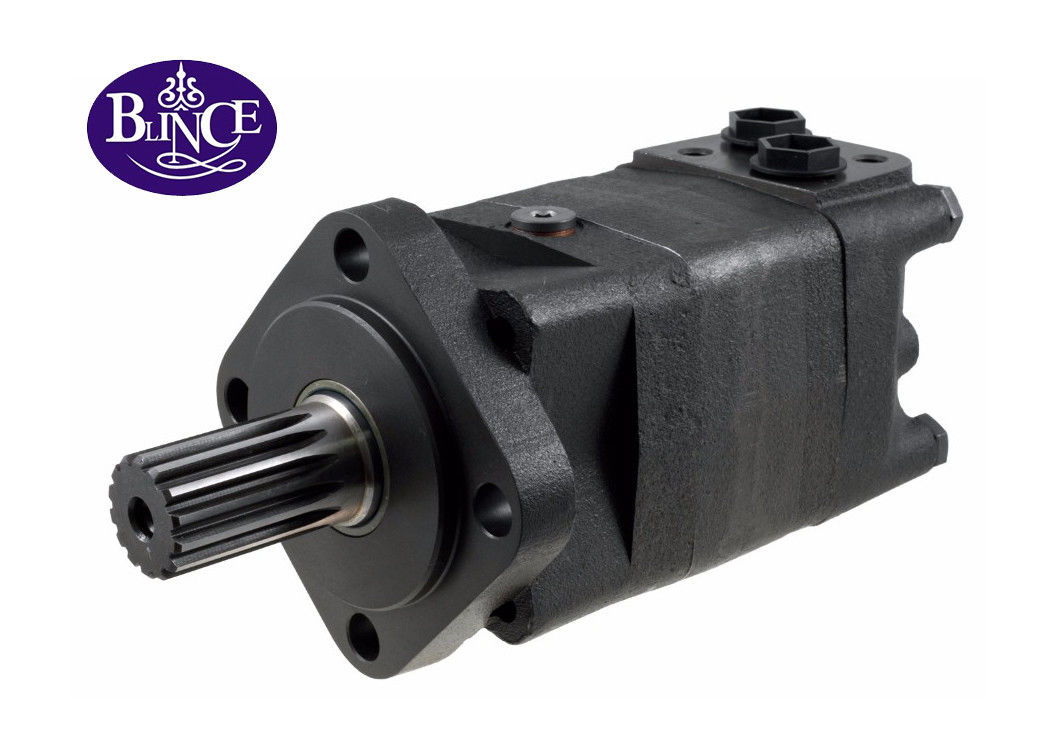

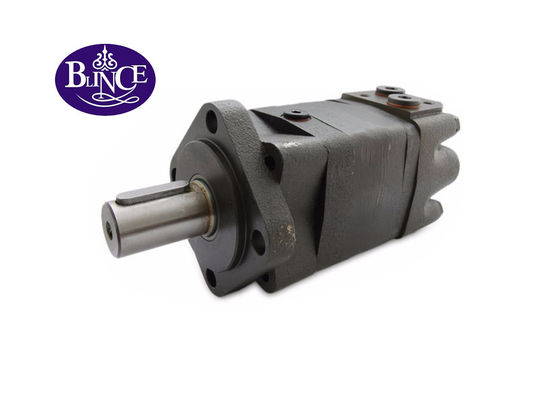

Geroler Gear Set OMS BMS Axial Hydraulic Motor Hydraulic Power Parts
Characteristic featutres:
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
* The new series motor is suitable for vehicles with greater loads and pressure drop.
Our hydraulic motor can replace Sauer-Danfoss orbital motors ,the similar design ,the same mounting ,use ,etc. We can offer more than 2000 different orbital motors, many in types, vari ants and sizes (incl. different shaft versions).
• Technical data on small motors: BMM replace OMM
• Technical data on medium sized motors: BMP,BMR,BMH replace OMP, OMR, OMH
• Technical data on medium sized motors: BMSY replace OMS
• Technical data on large motors: BMT,BMV replace OMT and OMV
| Type |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
OMSY |
||
|
Displacement |
80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | ||
|
Max speed rate (rpm) |
cont | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
| int | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | ||
|
Max torque |
cont | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
| int | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | ||
|
Max output |
cont | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 | |
| int | 20 | 22 | 23 | 24 | 24 | 23.8 | 20.2 | 12 | 11 | ||
|
Max pressure |
cont | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 | |
| int | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | ||
|
Max.flow |
cont | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| int | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | ||
OMS installation dimension:
Contact us and get more information, we will help you to get your best choice.
