| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OK hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Displacement: | 36 To 318.4cc/rev | Speed: | 162 To 1111 Rpm |
|---|---|---|---|
| Torque: | 66to 373 N.m | Power: | 6.2 To10.8kw |
| Shaft: | Straight ,splined Shaft | Warranty: | One Year |
| Color: | As Required | ||
| High Light: | geroler hydraulic motor,small hydraulic motors |
||

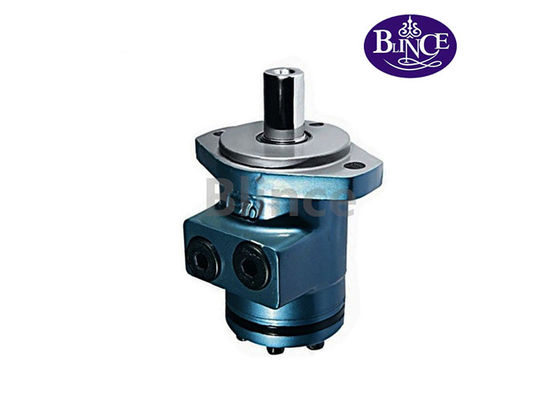

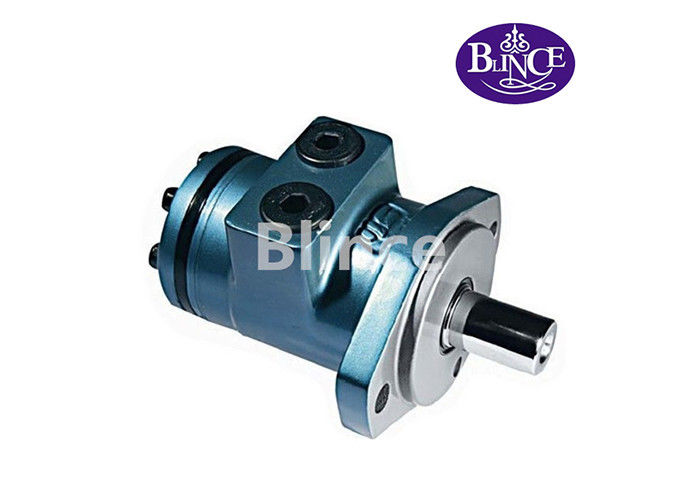

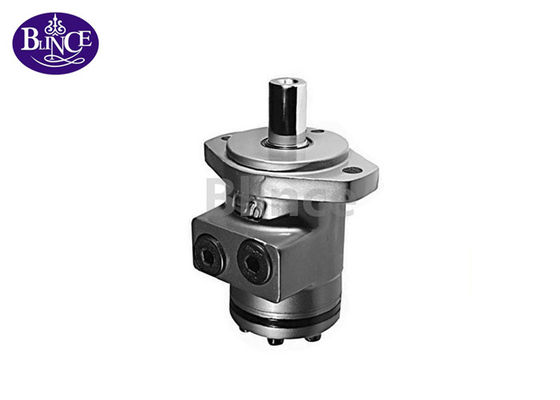

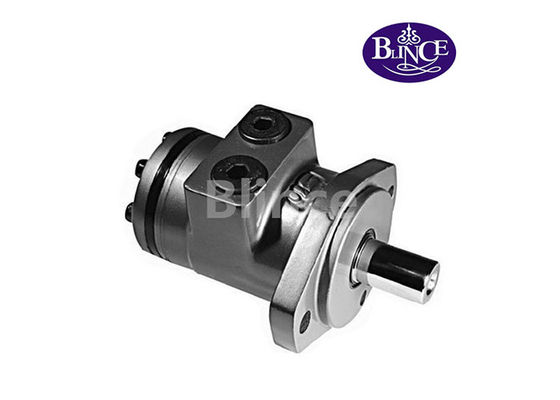

Compact Size OK Series Gerotor Hydraulic Motor For Mini Injection Molding Machine
OK series motor perfectly replace danfoss DS, and adapt the advanced Geroler gear set design with shaft distribution
flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation,
high efficiency and long life.
Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation
Applications:
applicated in (sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
| Type |
0K 36 |
0K 50 |
0K 80 |
0K 100 |
0K 125 |
0K 160 |
0K 200 |
0K 250 |
0K 315 |
0K 375 |
|
| Displacement(cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.5 | |
|
Max torque (n.m) |
cont | 66 | 100 | 158 | 200 | 248 | 315 | 339 | 403 | 398 | 373 |
| inter | 83 | 129 | 196 | 242 | 298 | 384 | 419 | 474 | 498 | 466 | |
|
Max pressure (Mpa) |
cont | 14 | 14 | 14 | 14 | 14 | 14 | 12.5 | 11 | 9 | 7.5 |
| inter | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 15.5 | 14 | 12.5 | 9 | |
| Max speed | cont | 1111 | 780 | 744 | 595 | 480 | 382 | 301 | 238 | 191 | 162 |
|
Max flow (L/min) |
cont | 40 | 40 | 60 | 60 | 60 | 60 |
60
|
60 | 60 | 60 |
