| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMH hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 100-200usd/pc |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Displacement: | 200-500cc | Speed: | 155-366rpm |
|---|---|---|---|
| Torque: | 510 To 830 N.m | Flow: | 75L/min |
| Flange: | Square And Rhombus Flange | Warranty: | One Year |
| Weight: | 10.5kg-13kg | Type: | Hydraulic Orbital Motor |
| Application: | Feeding Truck, Mixer Truck | ||
| High Light: | hydraulic gear motor,small hydraulic motors |
||

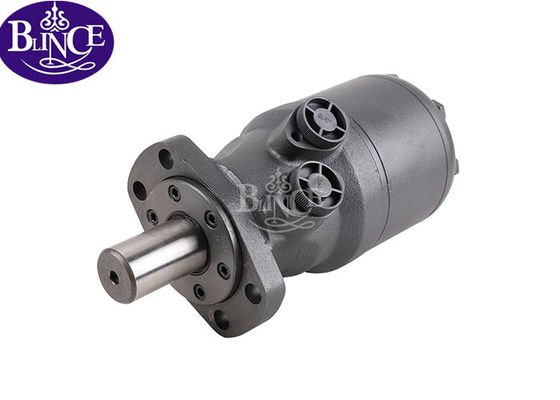

M S Hydraulic Motor OMH BMH 200cc 250cc Hydraulic Motor Components Hydraulic Torque Motor
M S Hydraulic Motor OMH BMH 200cc 250cc Hydraulic Motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Features:
* The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
| Type |
OMH 200 |
OMH 250 |
OMH 315 |
OMH 400 |
OMH 500 |
|
| Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| inter | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| inter | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| inter | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| inter | 90 | 90 | 90 | 90 | 90 | |
|
Weight (kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
Email: sales@blince.com
