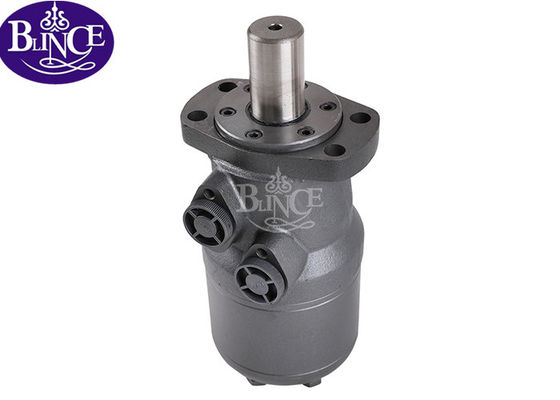

Danfoss Hydraulic Motor Torque OMH 400cc 500cc Hydraulic Orbit Motor For Feed Carriage

Danfoss Hydraulic Motor Torque OMH 400cc 500cc Hydraulic Orbit Motor For Feed Carriage

    • Danfoss Hydraulic Motor Torque OMH 400cc 500cc Hydraulic Orbit Motor For Feed Carriage
    • Danfoss Hydraulic Motor Torque OMH 400cc 500cc Hydraulic Orbit Motor For Feed Carriage
  • Danfoss Hydraulic Motor Torque OMH 400cc 500cc Hydraulic Orbit Motor For Feed Carriage

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMH hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 100-200usd/pc
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Displacement: 200-500cc Speed: 155-366rpm
    Torque: 510 To 830 N.m Flow: 75L/min
    Flange: Square And Rhombus Flange Warranty: One Year
    Weight: 10.5kg-13kg Type: Hydraulic Orbital Motor
    Application: Feeding Truck, Mixer Truck
    High Light:

    hydraulic gear motor

    ,

    small hydraulic motors

    Danfoss Hydraulic Motor Torque OMH 400cc 500cc Hydraulic Orbit Motor For Feed Carriage



    Danfoss Hydraulic Motor Torque Hydraulic Orbit Motor



    Displacement (cc):
    OMH160, OMH200, OMH250, OMH315, OMH400, OMH500

    Flange:
    1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
    2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6



    Characteristic features:

    *Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

    *Shaft seal can bear high pressure of back and the motor can be used in parallel or series.

    *Special design in the driver-linker and prolong operating life.

    *Special design for distribution system can meet the requirement of low noise of unit.

    *Compact volume and easy installation.



    Type

    OMH

    200

    OMH

    250

    OMH

    315

    OMH

    400

    OMH

    500

    Displacement (cc/rev) 203.2 255.9 316.5 406.4 489.2

    Max torque

    (n.m)

    cont 510 621 740 850 830
    inter 439 348 282 220 184

    Max pressure

    (mpa)

    cont 17.5 17.5 17.5 15.5 12.5
    inter 20 20 20 19 16

    Max speed rate

    (rpm)

    cont 366 290 236 183 155
    inter 439 348 282 220 184

    Max flow

    (L/min)

    cont 75 75 75 75 75
    inter 90 90 90 90 90

    Weight (kg)



    10.5 11 11.5 12.3 13.0







    Danfoss Hydraulic Motor Torque OMH 400cc 500cc Hydraulic Orbit Motor For Feed Carriage





    Please feel free to contact us if have any questions or inquiries.

    Thanks for choosing Blince Hydraulic.
