| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMK6 hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Torque: | 565-1675n.m | Flow: | 150L/min |
|---|---|---|---|
| Shaft: | Cylindrical/splined | Warranty: | One Year |
| Material: | Cast Iron | Cont Speed: | 152-765rpm |
| Market: | Globle | Apperance: | Phosphating |
| High Light: | hydraulic gear motor,small hydraulic motors |
||

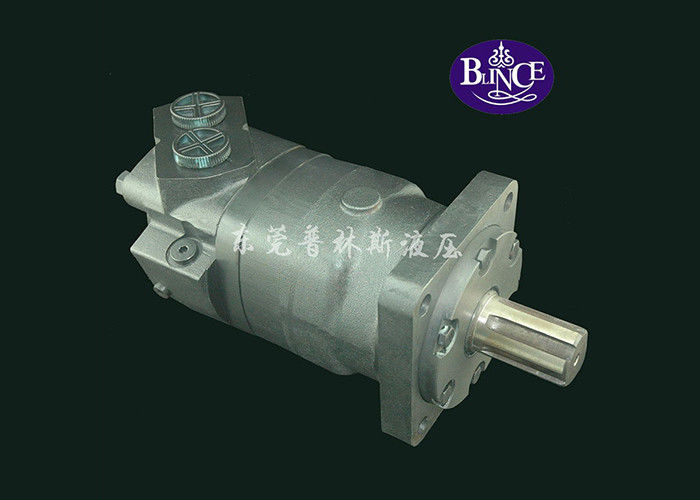

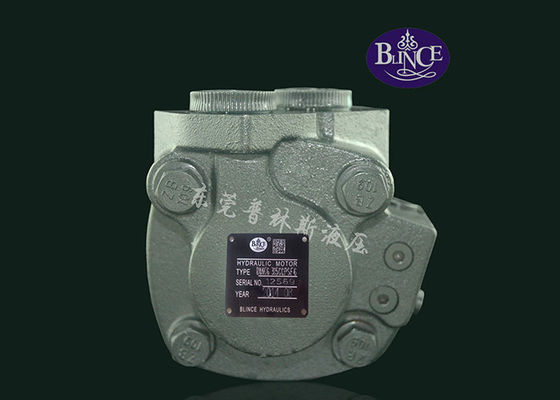

Char Lynn Eaton 6000 Series Gerotor Hydraulic Motor , Low Speed High Torque Motor
OMK6 motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Features:
1, Strong anti-shock capability and stability;
2, Stable variable switch and parking brake;
3, Enable free running working condition;
4, Multi-mounting options; hollow shaft design;
5, Large output torque; wide speed range; directly......
| Type | OMK6 200 |
OMK6 250 |
OMK6 315 |
OMK6 400 |
OMK6 500 |
OMK6 630 |
OMK6 800 |
OMK6 1000 |
|
| Geometric displacemen(cm3/rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
| Max.torque (N•m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max. pressure drop(MPa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max. flow (L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
We are offering an exclusive range of Gerotor Motor to valued clients. Our engineers develop this range using optimum quality material and modern equipment. Furthermore, our products are highly appreciated for long-lasting nature. Quality tested on various constraints, these products promise international standards. Additionally, we are capable in making these products available in bulk quantity and in time.
Blince profession supply all series hydraulic motor like OMM/OMP/OZ/OMR/OK/OMH/OMP1/OYM/OMRL/OM1/OM2/OM3/OM4/OMSY/OMT/OMV /OMER hydraulic orbit motor,hydraulic pump like ( PV2R series/V/VQ series/SQP series ).
