Place of Origin: | China |
Brand Name: | BLINCE |
Certification: | ISO9001:2008 |
Model Number: | OMER 250cc hydraulic motor |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton or wood case |
Delivery Time: | 15-20days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 3000pcs/month |
Displacement: | 257 Cc/rev | Speed: | 350rpm |
---|---|---|---|
Torque: | 700n.m | Power: | 17.5kw |
Shaft: | Magneto Mount 4hole | Warranty: | One Year |
Market: | Global | ||
High Light: | geroler hydraulic motor,small hydraulic motors |

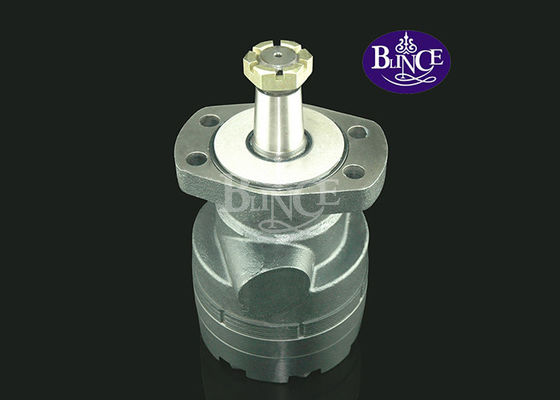

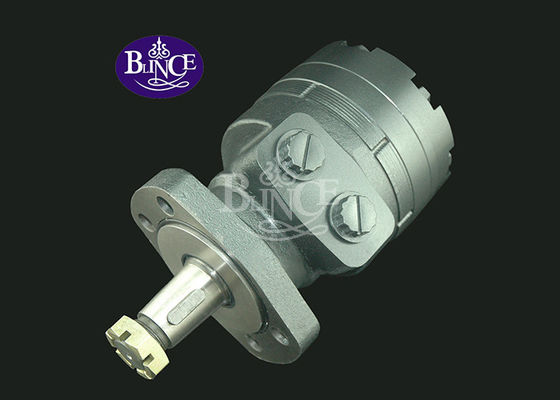

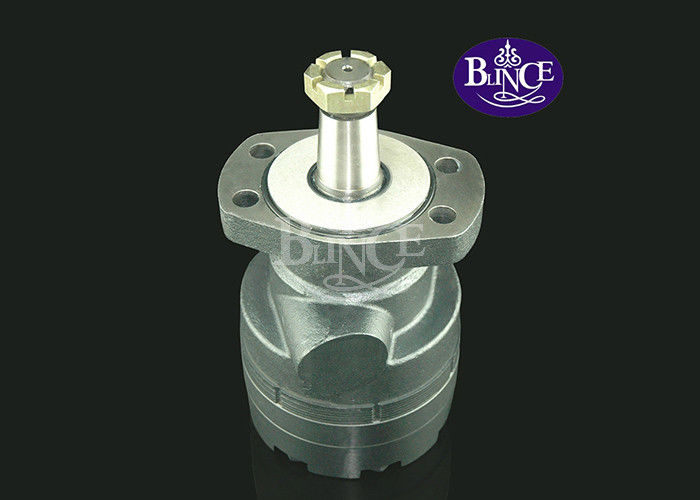

High Power Parker Gerotor Hydraulic Motor OMER250 Slow Speed Large Torque Motor
Blince BMER series Hydraulic motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
BMER Hydraulic motor Characteristic:
1.Vnced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
2.At seal can bear high pressure of back and the motor can be used in parallel or in series.
3.Eial design in the driver-linker and prolong operating life
4.Eial design for distribution system can meet the requirement of low noise of unit.
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in needle roller bearings that permit high axial and radial forces.
The case can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in high speed distribution flow, which can automatically compensate in
operating with high volume efficiency and long life , provide smooth and reliable operation.
* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than
shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high
volume efficiencies and can run very smoothly at low speed, gear box not required.
Type | BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
Geometric displacemen(cm3/rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
Max.speed(rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
Max.torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
Max.output(kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 14.5 | 11.5 | 8 |
int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 16.5 | 15 | 10 | |
Max. pressure drop(MPa) |
cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
