|Place of Origin:||China|
|Model Number:||DT/OR oil cooler|
|Minimum Order Quantity:||1|
|Packaging Details:||Carton or wood case|
|Payment Terms:||T/T, Western Union|
|Warranty:||One Year||Material:||Red Copper|
|Type:||OR Series Tube Heat Exchanger||Voltage:||220V/50Hz|
hydraulic oil heat exchanger,
fin and tube heat exchanger

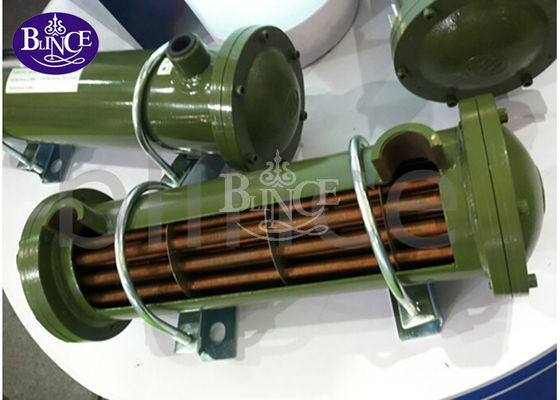

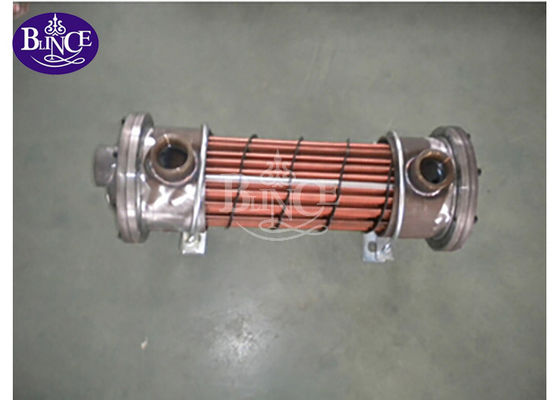

High Efficiency Hydraulic Tube Oil Cooler / Fin Tube Heat Exchanger
OR Series For Die Casting Machinery
Advantages of Hydraulic Oil Cooler
1. High heating efficiency for oil cooling
2. Compacted size
3. Easy installation
4. Stainless steel shell & tubes.
5. Various connectors for connection.
6. Drain water and drain oil connectors
Maximum working pressure on oil side: 20 bars
Maximum working pressure on water side: 3 bars
Design temperature: 250°C
1, The heat transfer is indeed optimal cooling effect of the cooler adopts multitube, have large cooling area and nice cooling effect.
2, The number of cooling area are full of copper tube used in this cooler, as the fin and tube type and rolling type tube type three times above, cooling area in accordance with the brasssurface area calculation,which can help more with cooling area.
3, The material of cooling pipe is pure red copper tube as the optimum heat dissipation and the heat transfer rate is more than 0.95.
These oil coolers are also suitable for heat transfer fluids, lubricating and quenching oils. They are high-quality products incorporating the best materials and the latest technical features. The tube stack is fully floating, so that thermal stresses are minimised and it can be easily removed, should cleaning be necessary.
