NHM Oil Orbit Radial Hydraulic Motor High Torque For Screw Push Machine

NHM Oil Orbit Radial Hydraulic Motor High Torque For Screw Push Machine

    • NHM Oil Orbit Radial Hydraulic Motor High Torque   For Screw Push Machine
    • NHM Oil Orbit Radial Hydraulic Motor High Torque   For Screw Push Machine
  • NHM Oil Orbit Radial Hydraulic Motor High Torque   For Screw Push Machine

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: Hydraulic radial piston motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Feature: Large Torque, Low Noise Shaft: Splined Key, Parallel Key
    Warranty: One Year Material: Cast Iron
    Structure: Radial Piston Series: Low Speed Big Torque
    High Light:

    hydraulic oil motor

    ,

    radial hydraulic motor

    China Intermot NHM Five Star Low Speed High Torque

    Hydraulic Radial Piston Hydraulic Oil Motor

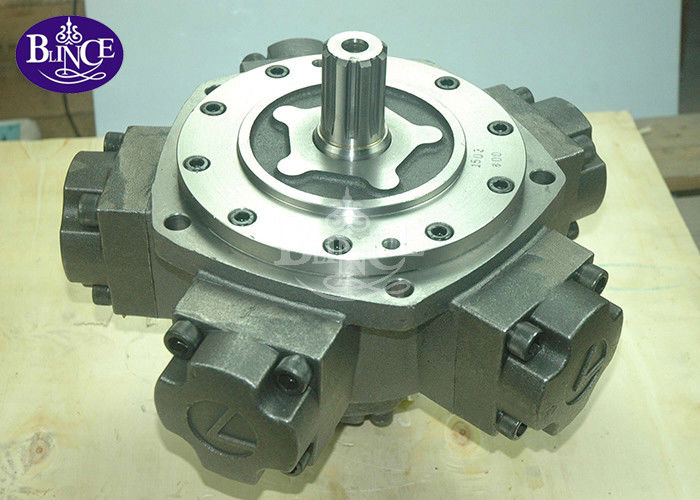

    Low speed big torque radial piston hydraulic motor for screw push machine

    BLINCE brand in 13 years successfully settled in the industrial brand mall, the production of radial piston hydraulic motor

    extrusion molding, the surface is bright black, more anti - wear, corrosion resistance, high temperature. The use of Taiwan NAK oil seal is not easy to leak oil.



    This is fixed displacement hydraulic radial piston motor. Our motor range varies from 63cc/rev to 7122 cm3/rev displacement.
    Main features of the motors are as follows:
    • high mechanical/volumetric efficiency, high starting torque.
    • good stability and reliability.
    • long lifetime, low noise.
    • compact design, light weight
    simply and reliable performance,good sealing capability,low leakage
    • good sealing capability,low leakage



    Model Displacement Pressure Torque Speed range
        Rated Max Rated N.m/Mpa
    LD 11-700 707 25 32 2612 104 4-400
    LD 11-800 784 25 32 2899 116 4-400
    LD 11-900 894 25 32 3306 132 4-400
    LD 11-1000 981 20 25 2902 145 3-320
    LD 11-1100 1104 20 25 3265 163 3-320
    LD 11-1200 1234 16 20 2929 182 3-320
    LD 11-1300 1301 16 20 3079 192 3-250
