Auger Low Speed High Torque Hydraulic Motor BM4 / OMH Can Bear High Pressure Of Back

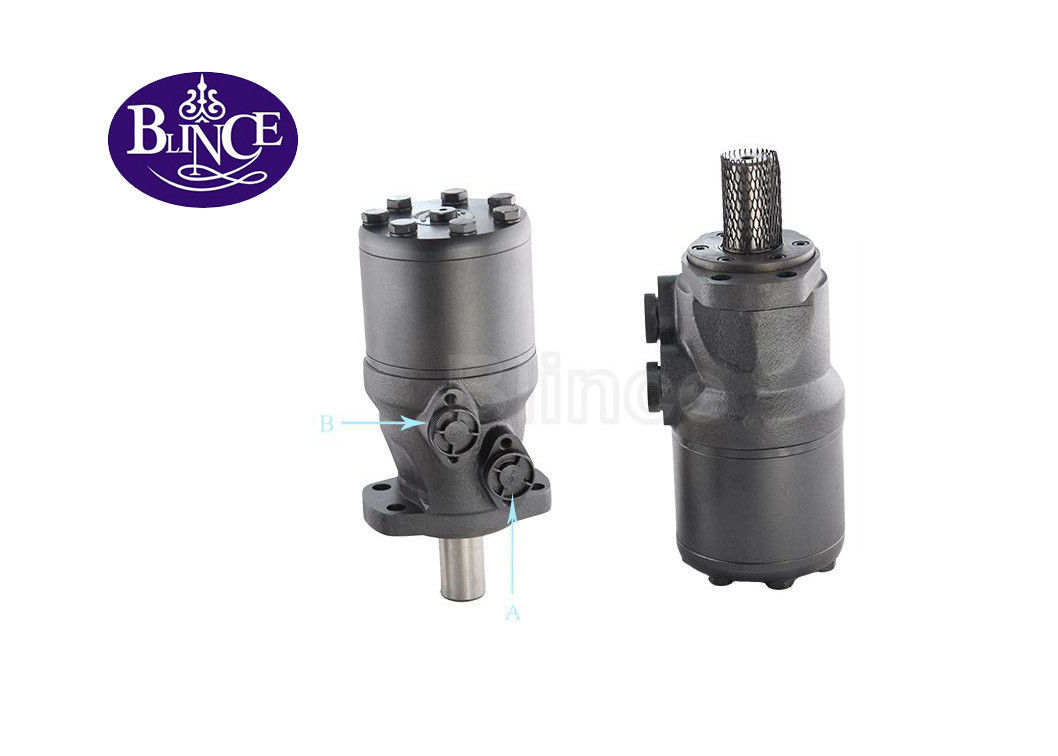

BM4 / OMH hydraulic motor low speed high torque hydraulic motor for auger



OMH series motor can widely use for construction equipment, the shaft (32mm and 35mm) is the most suitable size. The direction of shaft rotation and speed can be controlled easily and smoothly. And has a greater lateral load capacity and lon life.

Characteristics:

1.Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
2.Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
3.Special design in the driver-linker and prolong operation life.
4.Advanced design in disc distribution flow, which can automatically compensate in operating.
5.The output shaft adopts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
6.Various kinds of flange, output shaft and oil port mounting dimension.


Flange:
1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
Output shaft:
1)Shaft Ø 32, parallel key 10× 8× 45
2)Shaft Ø 35, parallel key 10× 8× 45

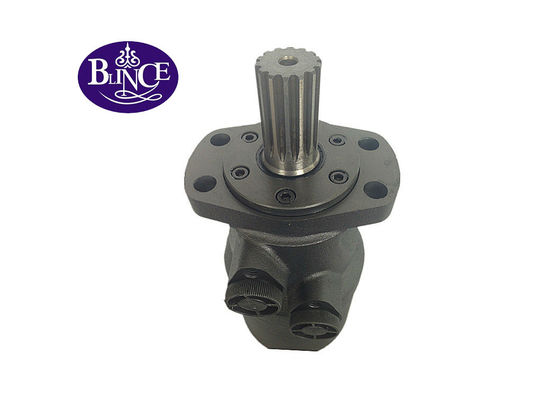

3)Shaft Ø 31.75, splined key 14-DP12/24
4)Long Shaft Ø 31.75, splined key 14-DP12/24
5)Shaft Ø 32, parallel key 7.96× 7.96× 31.75
6)Cone shaft Ø 35, parallel key B6× 6× 20
7)Shaft Ø 25.4, parallel key SAE 6B
Drain port:
1) G1/2 Manifold mount 4× M8, G1/4
2) M22× 1.5 Manifold mount 4× M8, M14× 1.5
3) 7/8-14 O× Ring Manifold mount 4× 5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold mount 4× 5/16-18UNC, 7/16-20UNF
5) PT(Rc) 1/2 Manifold mount 4× M8, PT(Rc)1/4

Payment terms
1, Small amount accept Paypal
2, Western Union
3, Large orders We usually accept T/T(with 30% deposit, the balance before shipment)

My friends, if you are interested in our hydraulic motor OMH/BMH. Pls send me enquiry!
We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
Vane pumps such as PV2R series, V series and VQ series, SQP series.

All these products are standard, best quality. If you are interested in any one of this products, don't hesitate to contact me.
