| Place of Origin: | China |
| Brand Name: | BLINCE |

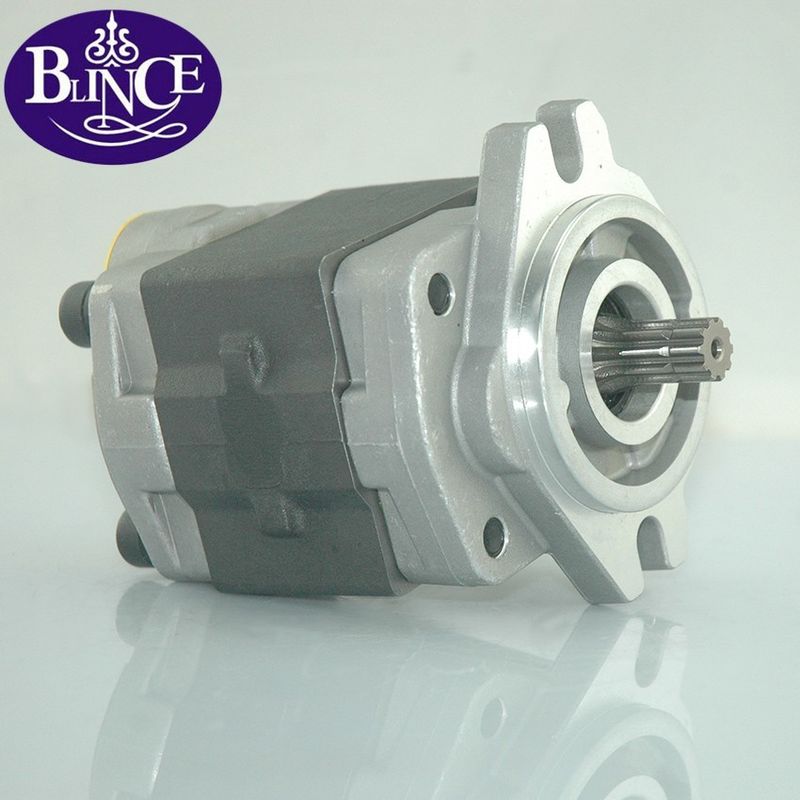

| Model Number: | SGP/HGP gear pump |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 71-100usd/pc |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Material: | Cast Iron | Displacement: | 19-36 |
|---|---|---|---|
| Pressure: | 25Mpa | Speed: | 3000rpm |
| Warranty: | One Year | ||
| High Light: | small hydraulic gear pump,cast iron hydraulic gear pump |
||
function well under high temperature with Viton’s seal. It can also run under high pressure with the oil less bearing design.
Main features:
1. High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency.
2. Long service life: high performance, high abrasion resistance, bearings in high voltage, high speed occasions running, not burned.
3. Light weight, compact structure, body aluminum alloy, high precision molding design, low noise.
4. Suitable for a wide range of civil construction machinery, industrial vehicles, handling machinery, agriculture and forestry, fishery machinery and industrial automation and other devices.
| Model |
Nominal displacement (ml/r) |
Pressure(Mpa) | Rotation speed(r/min) | Volumetric efficiency | L | Weight(kg) | |||
| Rated | Max | Min | Rated | Max | |||||
| SGP1-19 | 19 | 20 | 25 | 600 | 2500 | 3000 | 92 | 115.5 | 4.1 |
| SGP1-23 | 23 | 118.5 | 4.3 | ||||||
| SGP1-25 | 25 | 122.5 | 4.6 | ||||||
| SGP1-27 | 27 | 124.5 | 4.8 | ||||||
| SGP1-30 | 30 | 126.5 | 5.0 | ||||||
| SGP1-32 | 32 | 131.5 | 5.4 | ||||||
| SGP1-36 | 36 | 130.5 | 5.8 | ||||||
