| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMT 250 hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union, L/C,Paypal |
| Supply Ability: | 3000pcs/month |
| Displacement: | 251.8cc/rev | Speed: | 500rpm |
|---|---|---|---|
| Material: | Cast Iron | Power: | 34.5kw |
| Torque: | 730n.m | Warranty: | One Year |
| High Light: | omt motor,hydraulic pump motor |
||

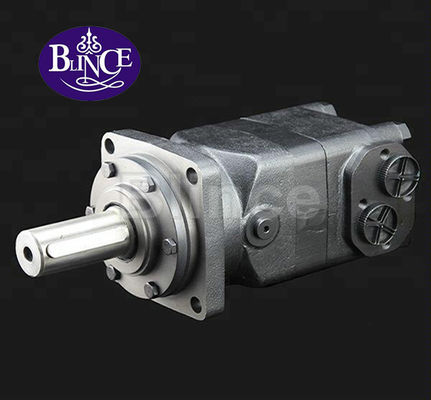

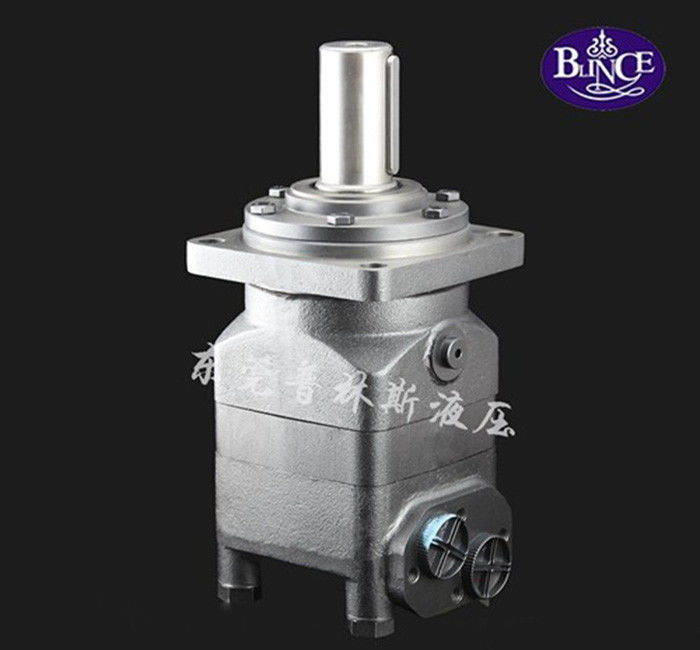

High Efficiency Slow Speed High Torque OMT 250 Hydraulic Motor For Construction
Blince OMT series Hydraulic motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic :
1. Advanced manufacturing devices for the Geroler gear set,which use low pressure ofstart-up, provide smooth and reliable operation and high efficiency.
2. The output shaft adapts in tapered roller bearings that permit high axial and radialforces.Can offer capacities of high pressure and high torque in the wide of applications.
3. Advanced design in disc distrbution flow, which can automatically compensate inoperating with high volume efficiency and long life, provide smooth and reliable operation
| Type |
OMT 160 |
OMT 200 |
OMT 230 |
OMT 250 |
OMT 315 |
OMT 400 |
OMT500 |
OMT 630 |
OMT 800 |
|
| Displacement (cc/rev) |
161.1
|
201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
|
Max torque (n.m) |
cont | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
|
Max pressure (Mpa) |
cont | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| Max speed ) | cont | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
|
Max flow (L/min) |
cont | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Weight(kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
