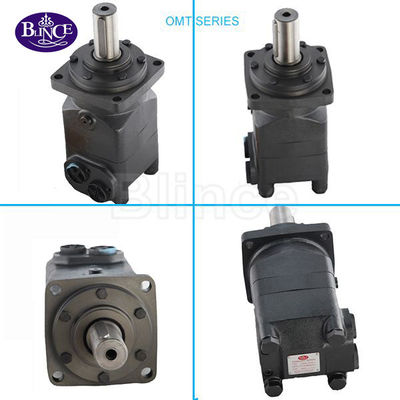

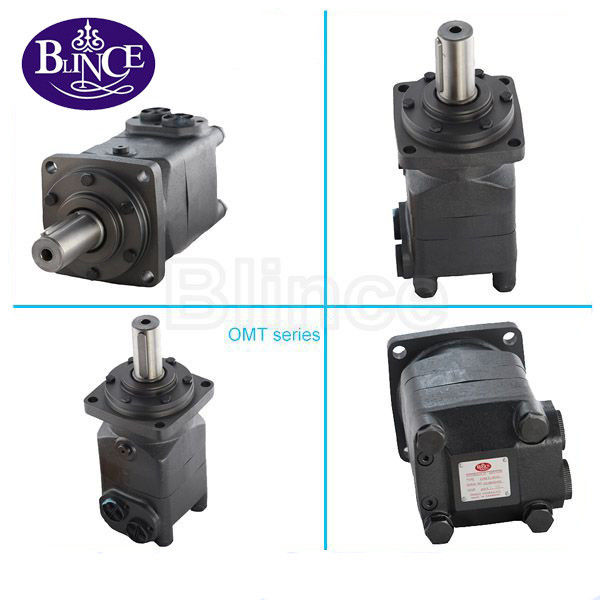

Disc Valve Low Speed High Torque Motor OMT160 OMT200 OMT250 Gerotor Geroler Hydraulic Motor

Disc Valve Low Speed High Torque Motor OMT160 OMT200 OMT250 Gerotor Geroler Hydraulic Motor

    • Disc Valve Low Speed High Torque Motor OMT160 OMT200 OMT250 Gerotor Geroler Hydraulic Motor
    • Disc Valve Low Speed High Torque Motor OMT160 OMT200 OMT250 Gerotor Geroler Hydraulic Motor
  • Disc Valve Low Speed High Torque Motor OMT160 OMT200 OMT250 Gerotor Geroler Hydraulic Motor

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMT hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union, L/C,Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Features: Long Life Warranty: One Year
    Flange: Four Bolts Square Flange Max Inlet Pressure: 21Mpa
    Market: Global Usage: Hydraulic Oil
    Application: Construction / Agriculture Machinery
    High Light:

    omt motor

    ,

    danfoss omt

    Low Speed High Torque Disc Valve Motor OMT160 OMT200 OMT250 Gerotor Geroler Motor



    Blince BMT160, BMT200, BMT230, BMT250, BMT315, BMT400, BMT500, BMT630, BMT800 orbit hydraulic motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.



    Advantage:

    1.Small, lightweight, smaller than other hydraulic motor of the same torque

    2.Wide speed range, non-grade adjustment of speed, minimum steady speed is 15rpm, easy and convenient to be equipped with, low cost

    3.Used in series and in parallel way of a hydraulic system

    Small rotating inertia, easy to be started, rotate both in clockwise and counterclockwise way,

    4.No need stop rotating when change direction



    Applications:

    1.Agricultural Machinery

    2.Forestry Equipment

    3.Fishing Equipment

    4.Plastics Industry

    5.Construction Industry

    6.Mining Industry



    Type

    OMT

    160

    OMT

    200

    OMT

    230

    OMT

    250

    OMT

    315

    OMT

    400

    OMT500

    OMT

    630

    OMT

    800

    Displacement (cc/rev)

    161.1



    201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8

    Max torque

    (n.m)

    cont 470 590 670 730 950 1080 1220 1318 1464
    int 560 710 821 880 1140 1260 1370 1498 1520

    Max pressure

    (Mpa)

    cont 20 20 20 20 20 18 16 14 12.5
    int 24 24 24 24 24 21 18 16 13
    Max speed ) cont 625 625 536 500 380 305 240 196 154
    int 780 750 643 600 460 365 285 233 185

    Max flow

    (L/min)

    cont 100 125 125 125 125 125 125 125 125
    int 125 150 150 150 150 150 150 150 150
    Weight(kg) 19.5 20 20.4 20.5 21 22 23 24 25



    Disc Valve Low Speed High Torque Motor OMT160 OMT200 OMT250 Gerotor Geroler Hydraulic Motor



    This motor series offers the perfect compromise between price and performance by producing work horse power at a reasonable cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow, high pressure applications.



    • Medium Duty Applications
    • SAE ‘C’ 4 Bolt Mounting Flange
    • 40mm Parallel Shaft
    • 3/4 BSP Ports
    • 160cc to 500cc Displacement



    Disc Valve Low Speed High Torque Motor OMT160 OMT200 OMT250 Gerotor Geroler Hydraulic Motor
