| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMM40cc |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing or wooden box |
| Delivery Time: | 10-20 working days |
| Payment Terms: | Western Union, T/T, paypal, , L/C |
| Supply Ability: | 3000pcs/month |
| Output Power: | Cont 2.4kw | Appearance: | Phosphating & Painting |
|---|---|---|---|
| Displacement Range: | 31.6cc/rev | Flow: | Cont 20L/min |
| Pressure: | High Pressure | Color: | Black |
| Warranty: | 1 Year | ||
| High Light: | danfoss omm,omm motor |
||

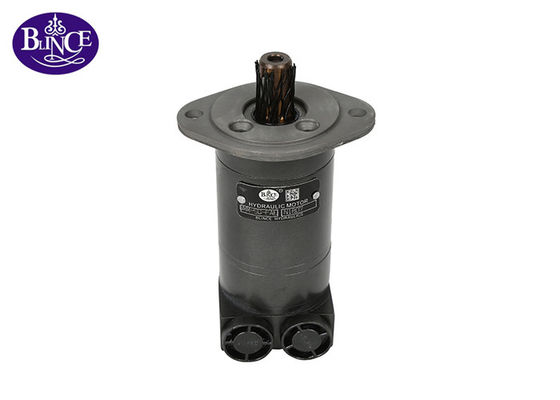

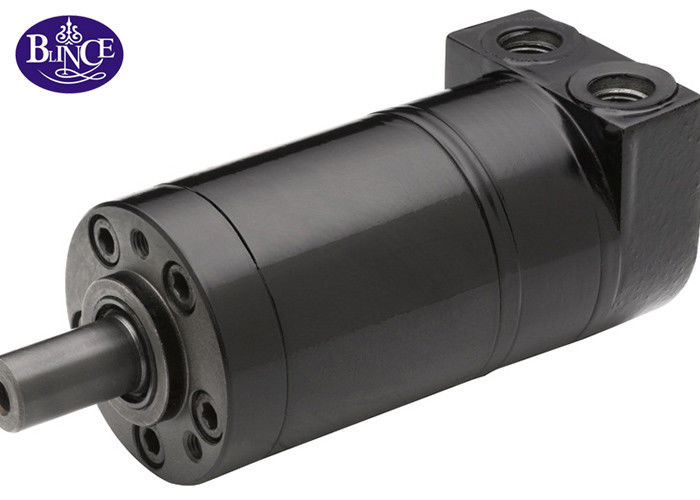

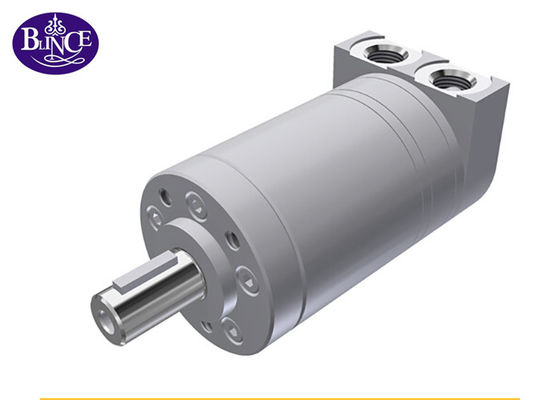

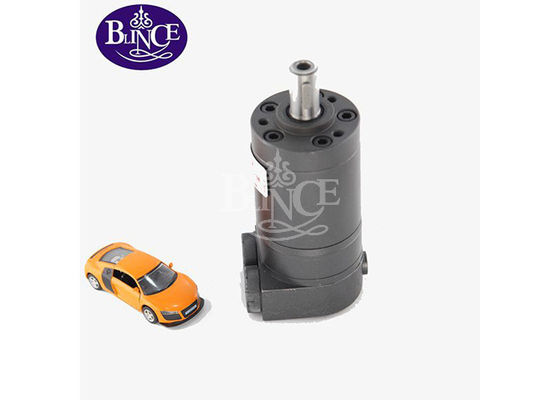

Hydraulic Motor OMM BMM40 Underwater Hydraulic Motor Fishing Boat Bottom Cleaning
OMM series motor are small volume,economical type,which is designed with shaft distritubion flow, which adapt the Gerotor gear set design and provide compact volume,high power and low weight, used in agriculture, forestry, machine tools and mine machines, etc.
UNIQUE FEATURE
1. high speed max 1950 rpm
2. freely disassemble leakage
3. high efficiency and high power
4. small volume to easy installation
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine
/ fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
| Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
| Type |
OMM 8 |
OMM 12.5 |
OMM 20 |
OMM 32 |
OMM 40 |
OMM 50 |
|
| Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max.pressure Drop (Mpa) |
cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing Blince Hydraulic.
