| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMM 32 / BMM 32 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing or wooden box |
| Delivery Time: | 10-20 working days |
| Payment Terms: | Western Union, T/T, paypal, , L/C |
| Supply Ability: | 3000pcs/month |
| Type: | OMM Hydraulic Motor | Max Speed: | Cont 630rpm |
|---|---|---|---|
| Pressure: | 10Mpa | Torque: | Cont 40 N.m |
| Flow: | Cont 20 L/min | Appearance: | Phosphating & Painting |
| Displacement Range: | 31.6cc/rev | Output Power: | Cont2.4kw |
| Motor Flange: | Circle / Diamond Flange | ||
| High Light: | danfoss omm,micro hydraulic motor |
||

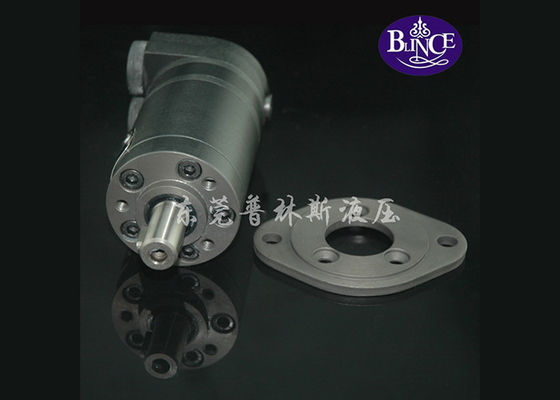

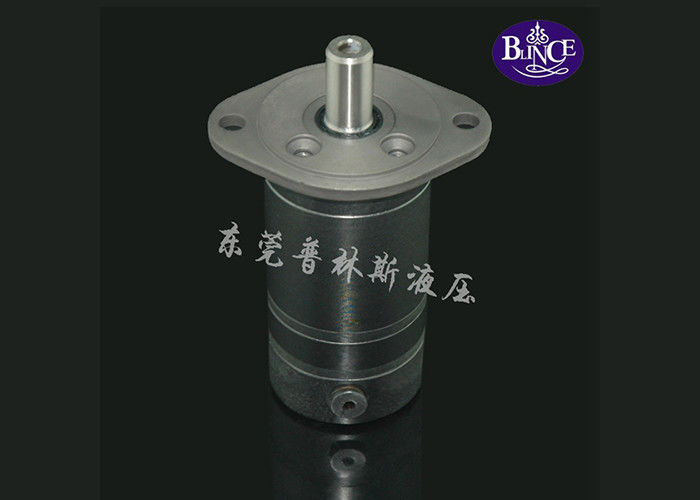

Small Volume Hydraulic Motor OMM32 / BMM32 For Marine Machine
OMM Gerotor 8Cc Hydraulic Motor For Fishing Net Hauler Brake
BMM-OMM series hydraulic motors are economical type which can be installed and used in a small space, they are designed with shaft distribution flow, they adapt the gerotor gear set design and provide compact volume, high power and low weight.
BMM hydraulic motors can well replace OMM series motors from DANFOSS.
Characteristic Features of BMM-OMM Orbit Hydraulic Gear:
1. The gerotor gear sets adopts the advanced processing technology in the world to ensure the small volume, high efficiency, high speed and long service life.
2. Shaft seal can bear high pressure of motor, which can be used in parallel or in series.
3. Advanced structural design.
Applications:
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
| Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
| Type |
OMM 8 |
OMM 12.5 |
OMM 20 |
OMM 32 |
OMM 40 |
OMM 50 |
|
| Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max.pressure Drop (Mpa) |
cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing Blince Hydraulic.
