| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | BMM 32 / OMM 32 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing or wooden box |
| Delivery Time: | 10-20 working days |
| Payment Terms: | Western Union, T/T, paypal, , L/C |
| Supply Ability: | 3000pcs/month |
| Type: | OMM Hydraulic Motor | Max Speed: | Cont 630rpm |
|---|---|---|---|
| Pressure: | 10Mpa | Appearance: | Phosphating & Painting |
| Displacement Range: | 31.6cc/rev | Motor Flange: | Circle / Diamond Flange |
| Color: | Black | Warranty: | One Year |
| High Light: | omm motor,micro hydraulic motor |
||

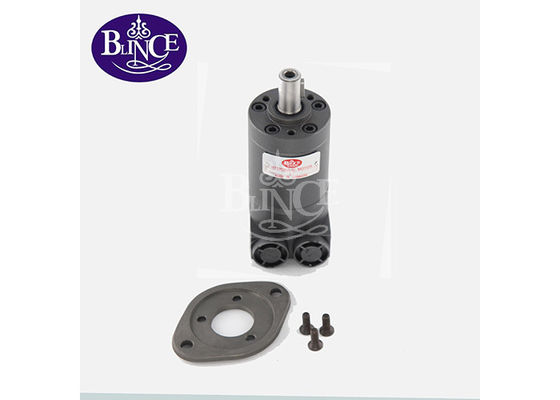

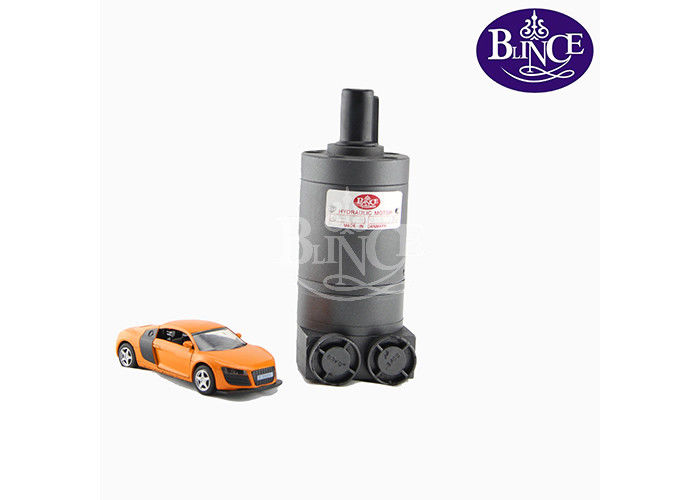

Danfoss 151G0003 151G0006 China Hydraulic Motor OMM 32cc For Hydrualic Machinary Parts
OMM series motor are small volume,economical type,which is designed with shaft distritubion flow, which adapt the Gerotor gear set design and provide compact volume,high power and low weight, widely used in agriculture, forestry, plastics, machine tools and mine machines, etc.
Feartures:
1. Mini hydraulic motor
2. Completely interchangeable with Danfoss original
3. Very competitive price
4. 1 year of warranty
5. Geroler type, high pressure capacity shaft seal design
6. Shaft diameter: 16 MM. Thread 3/8 BSP
7. Design and manufacturing of the spline and drives give the motor durability
8. Wide variety of mounting flanges, shafts,ports and speed provides design flexibility
9. Direction of shaft rotation and speed can be controlled easily and smoothly
10. Best combination of high efficiency and ecnomy in medium duty applications
11. Range from 8 to 50cc
12. OMM Model ranges: OMM8, OMM12.5, OMM20, OMM32, OMM40, OMM50.
| Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
| Type |
OMM 8 |
OMM 12.5 |
OMM 20 |
OMM 32 |
OMM 40 |
OMM 50 |
|
| Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max.pressure Drop (Mpa) |
cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Applications:
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
