| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | BMM 20 / BMM 20 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing or wooden box |
| Delivery Time: | 10-20 working days |
| Payment Terms: | Western Union, T/T, paypal, , L/C |
| Supply Ability: | 3000pcs/month |
| Type: | OMM Hydraulic Motor | Torque: | Cont 25 N.m |
|---|---|---|---|
| Flow: | Cont 20 L/min | Appearance: | Phosphating & Painting |
| Displacement Range: | 19.9cc/rev | Output Power: | Cont2.4kw |
| High Light: | omm motor,micro hydraulic motor |
||

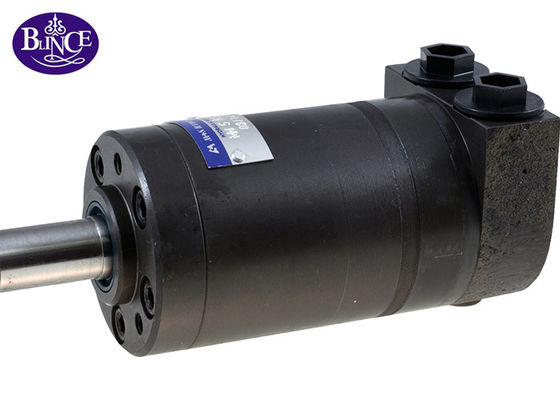

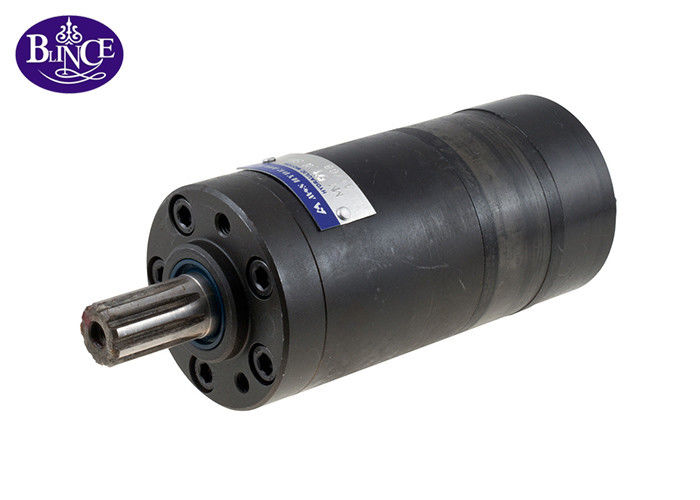

Hi Speed OMM 20cc Hydraulic Motor For Under Water Propeller Polishing Device
OMM series motor are small volume,economical type,which is designed with shaft distritubion flow, which adapt the Gerotor gear set design and provide compact volume,high power and low weight, widely used in agriculture, forestry, plastics, machine tools and mine machines, etc.
UNIQUE FEATURE
1. small volume to easy installation
2. high speed max 1950 rpm
3. freely disassemble leakage
4. high efficiency and long life
Applications:
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine
/ fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
| Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
| Type |
OMM 8 |
OMM 12.5 |
OMM 20 |
OMM 32 |
OMM 40 |
OMM 50 |
|
| Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max.pressure Drop (Mpa) |
cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing Blince Hydraulic.
