| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMM 20 32 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing or wooden box |
| Delivery Time: | 10-20 working days |
| Payment Terms: | Western Union, T/T, paypal, , L/C |
| Supply Ability: | 3000pcs/month |
| Max Speed: | Cont 1000rpm | Torque: | Cont 25-40 N.m |
|---|---|---|---|
| Appearance: | Phosphating & Painting | Displacement Range: | 19.9 & 31.6cc/rev |
| Output Power: | Cont 2.4kw | ||
| High Light: | omm motor,micro hydraulic motor |
||

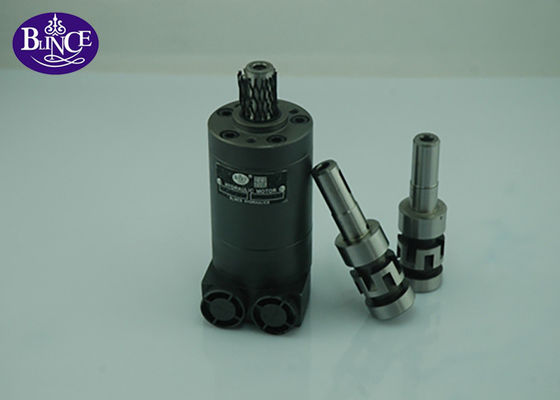

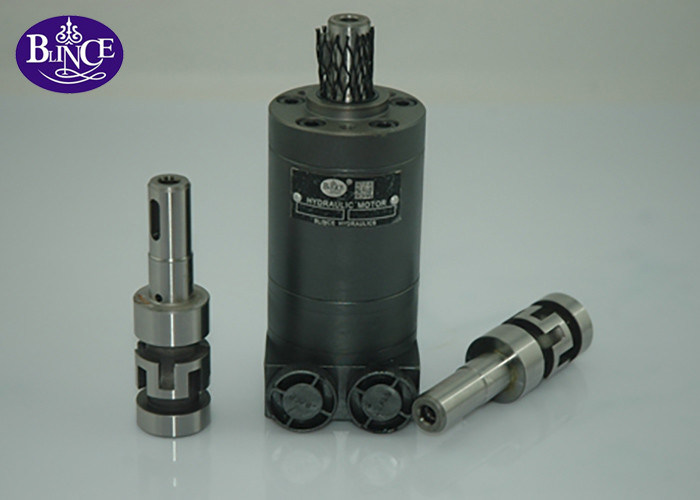

Micro Hydraulic Motor OMM 20cc 32cc Compact Volume For Mining Machinery
OMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and long life.
| Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
| Type |
OMM 8 |
OMM 12.5 |
OMM 20 |
OMM 32 |
OMM 40 |
OMM 50 |
|
| Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max.pressure Drop (Mpa) |
cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
Email: sales@blince.com
