| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMM 20 32 40 50 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packing or wooden box |
| Delivery Time: | 10-20 working days |
| Payment Terms: | Western Union, T/T, paypal, , L/C |
| Supply Ability: | 3000pcs/month |
| Max Speed: | Cont 1000rpm | Pressure: | 7-10Mpa |
|---|---|---|---|
| Torque: | Cont 25-46 N.m | Flow: | Cont 20 L/min |
| Appearance: | Phosphating & Painting | Displacement Range: | 19.9-50.3cc/rev |
| Output Power: | Cont1.8-2.4kw | ||
| High Light: | danfoss omm,micro hydraulic motor |
||

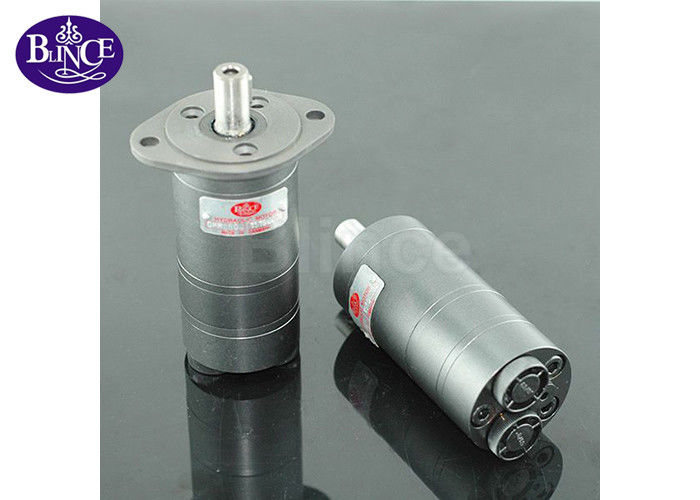

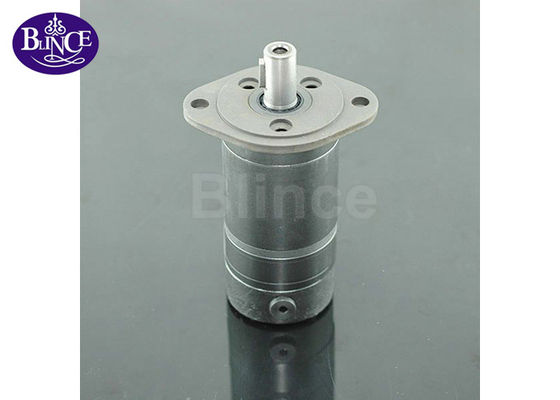

Hi Speed Gerotor Hydraulic Motor OMM 20cc 32cc 40cc 50cc For Sliding Equipment
Features:
1. Intermittent means the entrance of the maximum pressure;continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under interoittent working conditions
4. The maximum working temperature is 80°.
5. The maximum allowable back pressure is 10MPa,but the recommended back pressure should not exceed 5MPa.a leaking pipes is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
| Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
| Type |
OMM 8 |
OMM 12.5 |
OMM 20 |
OMM 32 |
OMM 40 |
OMM 50 |
|
| Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max.pressure Drop (Mpa) |
cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Applications:
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
