| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMRS hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Displacement: | 36 To 375 Cc/rev | Speed: | 155 To 1250 Rpm |
|---|---|---|---|
| Torque: | 72 To 390 N.m | Power: | 5 To13kw |
| Shaft: | Cylinde,splined And Tapered | Warranty: | One Year |
| Type: | Hydraulic Motors | Color: | Blue，Black, No Paint |
| High Light: | tiny hydraulic motor,roller stator hydraulic motor |
||

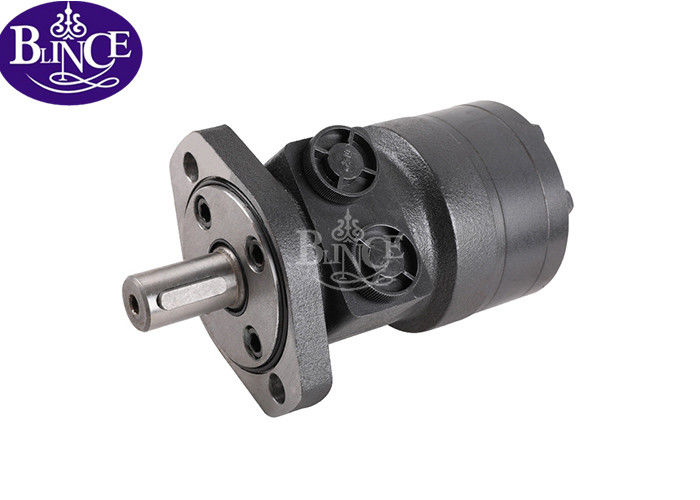

CHAR LYNN 103-1011-012 High Rpm Hydraulic Motor 607 Rpm, 183 Nm Used For Conveyors
Design improvements include upgraded steel end cap. O-Ring section seals, and optimized Geroler set. The Geroler set has precision machined rollers in the outer ring which provide support with rolling contact between the star and ring.
Blince S series Hydraulic motor Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,
provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation
| Type | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | OMRS | |
| Displacement (cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
Max speed rate (rpm)
| cont | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
Max pressure (Mpa) | cont | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
Max torque (n.m) | cont | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
Max flow (L/min) | cont | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight(kg) | 6.5 | 6.7 | 6.9 | 7.0 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 | |
Please feel free to contact us if have any questions or inquiries. Thanks for choosing Blince Hydraulic.
