| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | PV2R hydraulic vane pump |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Features: | Low Noise High Pressure | Weight: | 22.5kg~45kg |
|---|---|---|---|
| Shaft: | Major Shaft Standard & Minor Shaft | Apperance: | Phosphating |
| Pressure: | 21Mpa | Usage: | Hydraulic Oil |
| Application: | Machine Tool Machinery | Speed: | 1800rpm |
| High Light: | vane type hydraulic pump,denison vane pump |
||

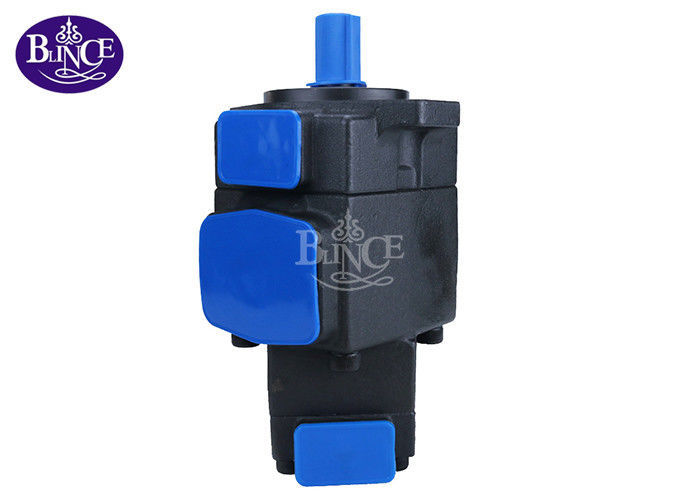

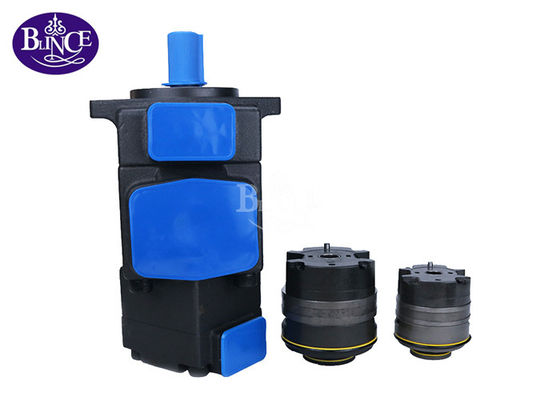

PV2R12 PV2R23 PV2R13 Double Hydraulic Oil Pump Vane Pump For Excavator
Yuken PV2R pump
PV2R single vane pump: PV2R1, PV2R2, PV2R3
PV2R double vane pump: PV2R12, PV2R13, PV2R23
Double vane pumps are composed with two single PV2R series pumps, which were driving by one shft and were assembled in parellel in one pump casing with one common inlet and two oulet ports that connecting to two individual oil circuits.
Special Characteristics:
PV2R Series vane pumps with high pressure and lower noise are high-performance products, which are developed and domestically produced by our company, featured by advanced performance, reasonable structure, good creditability, lower noise, ultra-low pulse and stable quality and so on.
PV2R Pump Applications:
Precisely made, the product can be used in the equipment with high precision and low noise, and is widely used in cutting, plastic, leather, forging and engineering machinery fields, and so on.
Model | Outlet | Nominal Displac -ment (mL/r) | Max pressure | Allowed driving speed (r /min) | |||||
Working oil of Petroleum series | Water-based synthetic hydraulic fluid | ||||||||
Particular pressure oil | Anti-wear oil | Common oil | Anti -wear water -glyco | Sul phosuc-cinic Ester fatty Of acid | Max | Mini | |||
PV2R 12 | Cove End Pump PV2R1 | -6 | 21 | 17.5 | 14 | 16 | 14 | 1800 (1200) | 600 |
| -8 | |||||||||
| -10 | |||||||||
| -12 | |||||||||
| -14 | |||||||||
| -17 | |||||||||
| -19 | |||||||||
| -23 | |||||||||
| -25 | |||||||||
| -28 | |||||||||
| -31 | |||||||||
Bearing Pump PV2R2 | -26 | 21 | 17.5 | 16 | 16 | 16 | 1800 (1200) | 750 | |
| -33 | |||||||||
| -41 | |||||||||
| -47 | |||||||||
| -53 | |||||||||
| -59 | |||||||||
| -65 | |||||||||
Model | Outlet | Nominal Displac -ment (mL/r) | Max pressure | Allowed driving speed (r /min) | |||||
Working oil of Petroleum series | Water-based synthetic hydraulic fluid | ||||||||
Particular pressure oil | Anti-wear oil | Common oil | Anti -wear water -glyco | Sul phosuc-cinic Ester fatty Of acid | Max | Mini | |||
PV2R 13 | Cove End Pump PV2R1 | -6 | 21 | 17.5 | 16 | 16 | 16 | 1800 (1200) | 750 |
| -8 | |||||||||
| -10 | |||||||||
| -12 | |||||||||
| -14 | |||||||||
| -17 | |||||||||
| -19 | |||||||||
| -23 | |||||||||
| -25 | |||||||||
| -28 | |||||||||
| -31 | |||||||||
Bearing Pump PV2R3 | -52 | 14 | 14 | 600 | |||||
| -60 | |||||||||
| -66 | |||||||||
| -76 | |||||||||
| -85 | |||||||||
| -94 | |||||||||
| -116 | |||||||||
| -125 | |||||||||
| -136 | 17.5 | 16 | 14 | 1200 | |||||
| -153 | |||||||||
Model | Outlet | Nominal Displac -ment (mL/r) | Max pressure | Allowed driving speed (r /min) | |||||
Working oil of Petroleum series | Water-based synthetic hydraulic fluid | ||||||||
Particular pressure oil | Anti-wear oil | Common oil | Anti -wear water -glyco | Sul phosuc-cinic Ester fatty Of acid | Max | Mini | |||
PV2R 23 | Cove End Pump PV2R2 | -26 | 21 | 17.5 | 14 | 16 | 14 | 1800 (1200) | 600 |
| -33 | |||||||||
| -41 | |||||||||
| -47 | |||||||||
| -53 | |||||||||
| -59 | |||||||||
| -65 | |||||||||
Bearing Pump PV2R3 | -52 | ||||||||
| -60 | |||||||||
| -66 | |||||||||
| -76 | |||||||||
| -85 | |||||||||
| -94 | |||||||||
| -116 | 17.5 | 16 | 14 | 1200 | |||||
| -125 | |||||||||
| 136 | |||||||||
| 153 | |||||||||
