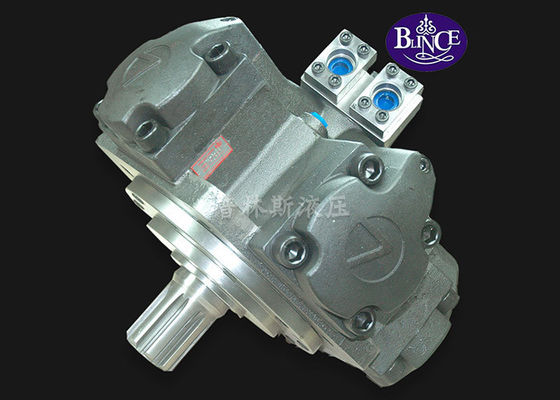

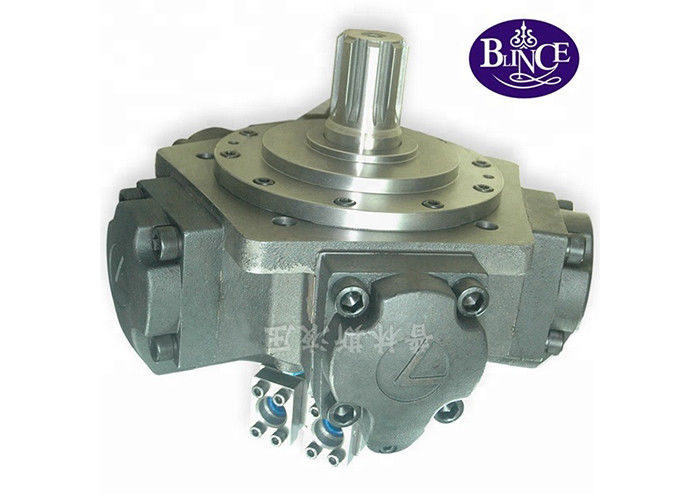

High Start Torque JMDG Radial Piston Hydraulic Motor , Shoe Machine Low Rpm Hydraulic Motor Low Noise

High Start Torque JMDG Radial Piston Hydraulic Motor , Shoe Machine Low Rpm Hydraulic Motor Low Noise

    • High Start Torque JMDG Radial Piston Hydraulic Motor ,   Shoe Machine Low Rpm Hydraulic Motor  Low Noise
    • High Start Torque JMDG Radial Piston Hydraulic Motor ,   Shoe Machine Low Rpm Hydraulic Motor  Low Noise
  • High Start Torque JMDG Radial Piston Hydraulic Motor ,   Shoe Machine Low Rpm Hydraulic Motor  Low Noise

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: Hydraulic radial piston motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Material: Cast Iron Structure: Radial Piston
    Series: Low Speed Big Torque Motor Power: Hydraulic Oil
    Characteristics: Large Torque, Low Noise Application: Heavy Equiment
    Major Shaft: Splined Key, Parallel Key Warranty: 1 Year
    High Light:

    hydraulic oil motor

    ,

    hydraulic piston motor

    Low Noise High Start Torque JMDG Radial Piston Hydraulic Motor For Shoe Machine



    Radial piston hydraulic motor



    BLINCE brand in 13 years successfully settled in the industrial brand mall, the production of radial piston hydraulic motor extrusion molding, the surface is bright black, more anti - wear, corrosion resistance, high temperature. The use of Taiwan NAK oil seal is not easy to leak oil.



    This is fixed displacement hydraulic radial piston motor. Our motor range varies from 63cc/rev to 7122 cm3/rev displacement.
    Main features of the motors are as follows:



    1. HIGH STARTING TORQUE


    High starting torque efficiencies at high pressures
    Less energy wastage and heat generation, fuel consumption reduction especially with frequent stopstart work cycles
    Enables large obstacles and steep slopes to be overcome easily

    2. WIDE SPEED RANGE


    Wide specific speed ranges
    Good low and high speed characteristics



    3. HIGH VOLUMETRIC EFFICIENCY


    Volumetric efficiencies in all operating conditions
    Seal design ensures volumetric efficiencies not affected even if components become worn with use



    4. CAVITATION RESISTANCE


    Retaining force of piston retaining rings prevents separation of piston from the shaft, SAI design enables the motor to run without oil in the pistons



    Model Displacement Pressure Torque Speed range
        Rated Max Rated N.m/Mpa
    LD 11-700 707 25 32 2612 104 4-400
    LD 11-800 784 25 32 2899 116 4-400
    LD 11-900 894 25 32 3306 132 4-400
    LD 11-1000 981 20 25 2902 145 3-320
    LD 11-1100 1104 20 25 3265 163 3-320
    LD 11-1200 1234 16 20 2929 182 3-320
    LD 11-1300 1301 16 20 3079 192 3-250
