Low Noise Rotor Stator OMH 250 Hydraulic Pump Motor hi Force Skid Steer Loader Support

Low Noise Rotor Stator OMH 250 Hydraulic Pump Motor hi Force Skid Steer Loader Support

    • Low Noise Rotor Stator OMH 250 Hydraulic Pump Motor hi Force Skid Steer Loader Support
    • Low Noise Rotor Stator OMH 250 Hydraulic Pump Motor hi Force Skid Steer Loader Support
  • Low Noise Rotor Stator OMH 250 Hydraulic Pump Motor hi Force Skid Steer Loader Support

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMH hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union, , L/C,Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Displacement: 203.2-489.2mL/rev Torque: 510-830 N.m
    Flow: 75L/min Flange: Two Bolts & Four Bolts
    Warranty: One Year Application: Rotary Actuator/ Concrete Mixer
    Port: G1/2"; Drain Port:G1/4” Market: Globle
    Packing: Export Standard Package
    High Light:

    omh 400 hydraulic motor

    ,

    sauer hydraulic motor

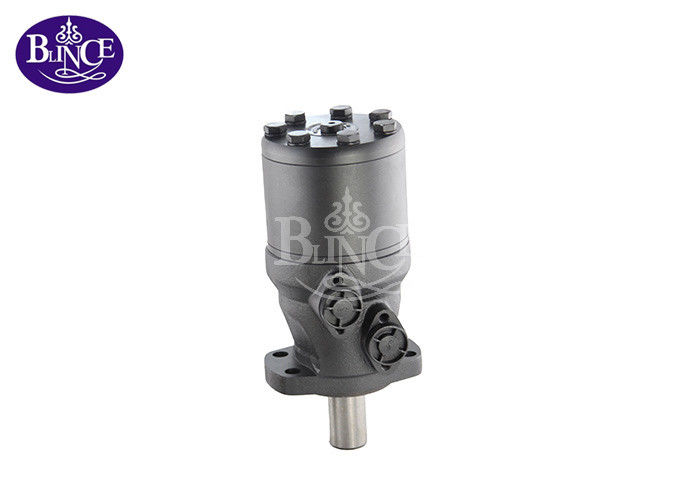

    Low Noise Rotor Stator OMH Hydraulic Pump Motor hi Force Hydraulic Motor For Skid Steer Loader

    BMH series motor can widely use for construction equipment, the shaft (32mm and 35mm) is the most suitable size. The direction of shaft rotation and speed can be controlled easily and smoothly. And has a greater lateral load capacity and lon life.

    Product advantage:
    1.Products after phosphating treatment, not easy to rust
    2.Used import bearing ensure that no laekage
    3.Drain port flexible use in practice ,highly integrated
    4.Threads of the mounting holes for conical teeth, sealed performance is good
    5.The in and out port are inclined,compact structure , convenient operation
    6.Our orbit motor has the function of automatic compensation torque


    Type

    OMH
    200

    OMH
    250

    OMH
    315

    OMH
    400

    OMH
    500

    Displacement (cc/rev)203.2255.9316.5406.4489.2

    Max torque
    (n.m)

    cont510621740850830
    inter439348282220184

    Max pressure
    (mpa)

    cont17.517.517.515.512.5
    inter2020201916

    Max speed rate
    (rpm)

    cont366290236183155
    inter439348282220184

    Max flow
    (L/min)

    cont7575757575
    inter9090909090

    Weight (kg)


    10.51111.512.313.0


    Flange:
    1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
    2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
    Output shaft:
    1)Shaft Ø 32, parallel key 10× 8× 45
    2)Shaft Ø 35, parallel key 10× 8× 45
    3)Shaft Ø 31.75, splined key 14-DP12/24
    4)Long Shaft Ø 31.75, splined key 14-DP12/24
    5)Shaft Ø 32, parallel key 7.96× 7.96× 31.75
    6)Cone shaft Ø 35, parallel key B6× 6× 20
    7)Shaft Ø 25.4, parallel key SAE 6B
    Drain port:
    1) G1/2 Manifold mount 4× M8, G1/4
    2) M22× 1.5 Manifold mount 4× M8, M14× 1.5
    3) 7/8-14 O× Ring Manifold mount 4× 5/16-18UNC, 7/16-20UNF
    4) 1/2-14 NPTF Manifold mount 4× 5/16-18UNC, 7/16-20UNF
    5) PT(Rc) 1/2 Manifold mount 4× M8, PT(Rc)1/4


    Payment terms
    1, Small amount accept Paypal
    2, Western Union
    3, Large orders We usually accept T/T(with 30% deposit, the balance before shipment)


    My friends, if you are interested in our hydraulic motor OMH/BMH. Pls send me enquiry!
    We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
    Vane pumps such as PV2R series, V series and VQ series, SQP series.


    All these products are standard, best quality. If you are interested in any one of this products, don't hesitate to contact me.
