| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | BMR200 hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union, L/C,Paypal |
| Supply Ability: | 3000pcs/month |
| Origin: | Guangdong, China | Material: | Cast Iron |
|---|---|---|---|
| Model No: | OMR200/BMR200 | Colour: | Gray And Black |
| Trademark: | Blince | HS Code: | 8412291000 |
| Delivery Date: | 20days | ||
| High Light: | danfoss omr,orbit hydraulic motor |
||

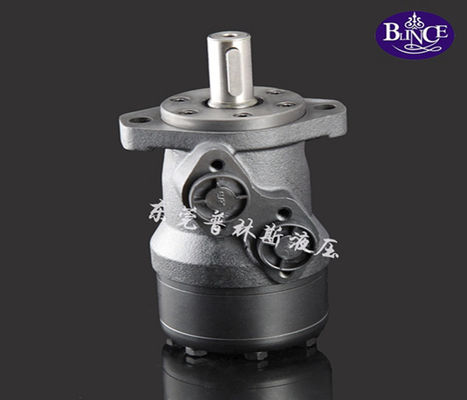

Low Noise Gerotor Hydraulic Motor bmr 200 For Road Sweeper
OMR Characteristics:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide
smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
* Special design for distribution system can meet the requirement of low noise of unit.
* Special design in the driver-linker and prolong operating life.
This Series motors incorporate the latest advances for smooth performance, efficiency and durability. Featuring an optimized Geroler geometry with seven precision rollers to eliminate sliding friction and provide rolling contact between the rotor and stator, thus increasing motor efficiency. A three-zone spool valve, integral check valves and a provision for a case drain reduce pressure on internal seals to improve product life.
| Type |
OMR 36 |
OMR 50 |
OMR 80 |
OMR 100 |
OMR 125 |
OMR 160 |
OMR 200 |
OMR 250 |
OMR 315 |
OMR 375 |
||
| Displacement (cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | ||
|
Max speed rate (rpm)
|
cont | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 | |
| int | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | ||
|
Max torque (N.m) |
cont | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 | |
| int | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | ||
|
Max output (KW) |
cont | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10.0 | 7.0 | 6.0 | 5.0 | |
| int | 9.8 | 11.2 | 15.0 | 15.0 | 14.5 | 14.0 | 13.0 | 9.5 | 9.0 | 8.0 | ||
|
Max pressure Drop(Mpa) |
cont | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 | |
| int | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | ||
|
Max.flow (L/min) |
cont | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | ||
| Weight(kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 | ||
OMR shaft mounting type:
The Shopping Note:
1.Take this page for reference and select product number in the following. For features that are not indicated in this page, please contact us.
2.If the product has quality problems, we can solve the problems.
3.If you have some questions about the installation of the product, please contact us.
