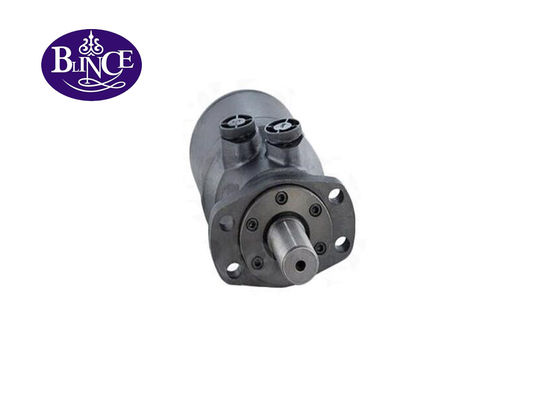

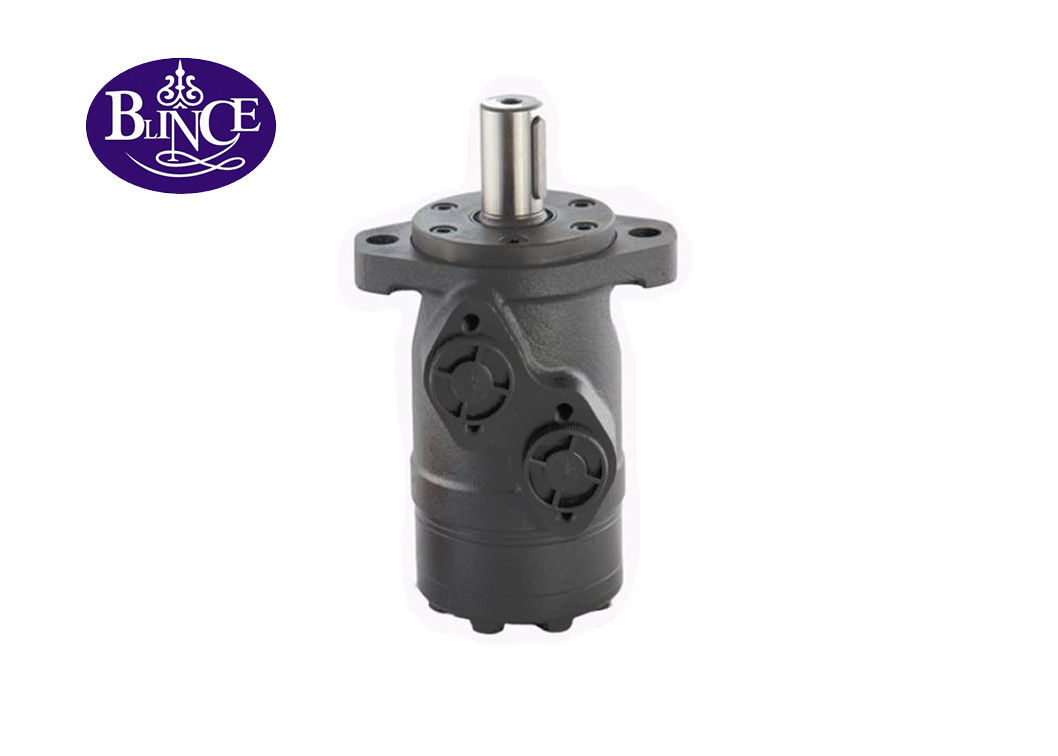

Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester

Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester

    • Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester
    • Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester
  • Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMP hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union, L/C, Paypal
    Supply Ability: 3000pc/month
    Contact Now
    Detailed Product Description
    Displacement: 36-486.5 Cc/rev Warranty: One Year
    Shaft: Cylinde,splined Material: Cast Iron
    Weight: 5.6-8kg Max Output: 5-11kw
    High Light:

    omp motor

    ,

    sauer danfoss hydraulic motor

    Gerotor and Roller Gear Set omp / bmp Hidromotor BMP / OMP For Harvester



    Gerotor and roller gear set omp/bmp hidromotor BMP / OMP for harvester, OMP series motor are small size, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.



    Features:

    1. Advanced manufacturing devices for the Gerotor gear set, which using low pressure of start-up, provide smooth, reliable operation.

    2. Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.

    3. High efficiency and prolong operating life

    4. Distribution system can meet the requirement of low noise of unit.



    type

    OMP

    OMPH

    36

    OMP

    OMPH

    50

    OMP

    OMPH

    80

    OMP

    OMPH

    100

    OMP

    OMPH

    125

    OMP

    OMPH

    160

    OMP

    OMPH

    200

    OMP

    OMPH

    250

    OMP

    OMPH

    315

    OMP

    OMPH

    400

    OMP

    OMPH

    500

    Geometric displacement 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
    Max.speed.(rpm) con. 1500 1150 770 615 490 383 310 250 192 155 120
    int. 1650 1450 960 770 615 475 385 310 240 190 150
    Max.torque(N.m cont. 55 100 146 182 236 302 360 383 375 360 385
    int. 76 128 186 227 290 370 440 460 555 525 560
    Max.output(KW) cont. 8.0 10.0 10.0 11.0 10.0 10.0 10.0 8.5 7.0 6.0 5.0
    int 11.5 12.0 12.0 13.0 12.0 12.0 12.0 10.5 8.5 7.0 6.0

    Max.pressure

    Drop(Mpa)

    cont. 12.5 14 14 14 14 14 14 11 9 7 6
    int 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
    Max.flow(L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
    int. 60 75 75 75 75 75 75 75 75 75 75



    Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester



    Our motors adapt high quality cast iron, high technology machinery and testing machine to produce.

    Every motor must be tested before dispatched to our customers. Most our customers are satisfied

    with motor, because they are high efficiency, long life and low noise.



    Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester

    Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester

    Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester



    Gerotor Roller Gear Set Bmp Omp 50 Hidro Hydraulic Motor For Harvester
