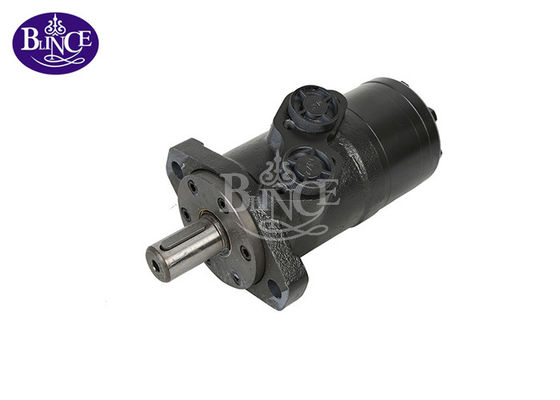

High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower

High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower

    • High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower
    • High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower
  • High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMP hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union, L/C, Paypal
    Supply Ability: 3000pc/month
    Contact Now
    Detailed Product Description
    Speed: 383 Rpm Material: Cast Iron
    Displacement: 157.2 Cc/rev Torque: 302N.M
    Warranty: One Year Shaft: Cylinde,splined
    Max Flow: 60L
    High Light:

    danfoss omp

    ,

    sauer danfoss hydraulic motor

    High Efficiency omp 160cc Gerotor Hydraulic Motor For Farm Mower



    High efficiency omp 160cc gerotor hydraulic motor for farm mower, OMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.



    Features:

    1. Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

    2. At seal can bear high pressure of back and the motor can be used in parallel or in series.

    3. Eial design in the driver-linker and prolong operating life

    4. Eial design for distribution system can meet the requirement of low noise of unit.



    type

    OMP

    OMPH

    36

    OMP

    OMPH

    50

    OMP

    OMPH

    80

    OMP

    OMPH

    100

    OMP

    OMPH

    125

    OMP

    OMPH

    160

    OMP

    OMPH

    200

    OMP

    OMPH

    250

    OMP

    OMPH

    315

    OMP

    OMPH

    400

    OMP

    OMPH

    500

    Geometric displacement 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
    Max.speed.(rpm) con. 1500 1150 770 615 490 383 310 250 192 155 120
    int. 1650 1450 960 770 615 475 385 310 240 190 150
    Max.torque(N.m cont. 55 100 146 182 236 302 360 383 375 360 385
    int. 76 128 186 227 290 370 440 460 555 525 560
    Max.output(KW) cont. 8.0 10.0 10.0 11.0 10.0 10.0 10.0 8.5 7.0 6.0 5.0
    int 11.5 12.0 12.0 13.0 12.0 12.0 12.0 10.5 8.5 7.0 6.0

    Max.pressure

    Drop(Mpa)

    cont. 12.5 14 14 14 14 14 14 11 9 7 6
    int 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
    Max.flow(L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
    int. 60 75 75 75 75 75 75 75 75 75 75



    High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower



    Our motors adapt high quality cast iron, high technology machinery and testing machine to produce.

    Every motor must be tested before dispatched to our customers. Most our customers are satisfied

    with motor, because they are high efficiency, long life and low noise.



    High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower

    High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower

    High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower



    High Efficiency OMP Hydraulic Motor , Omp 160cc Gerotor Hydraulic Motor For Farm Mower
