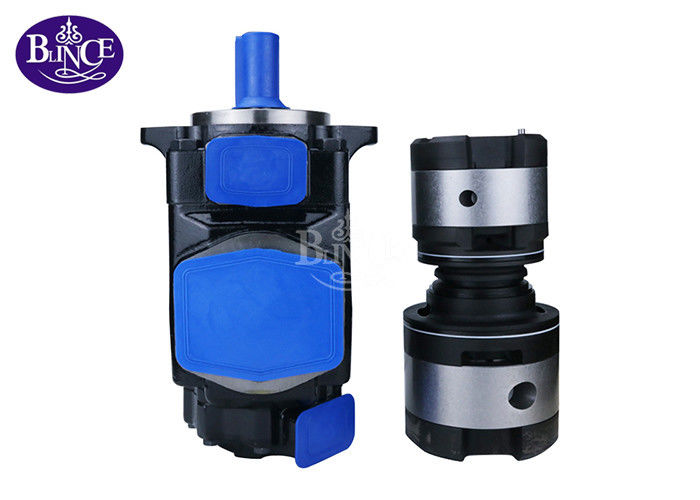

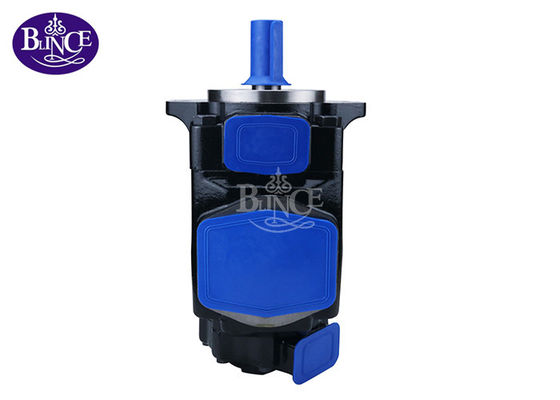

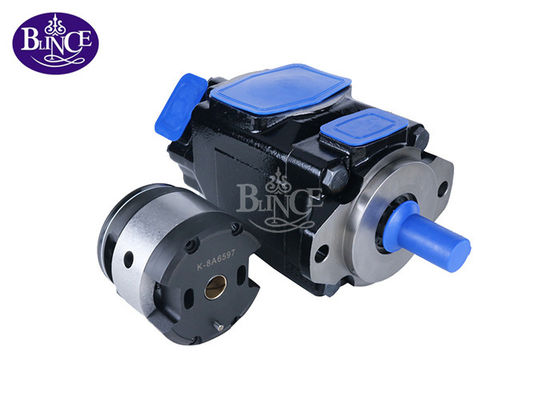

T6cc T6dc T6ec T6ed Double Chamber Vane Pump Fuel Agricultural Spraying

T6cc T6dc T6ec T6ed Double Hydraulic Pump Fuel Pump, Agricultural Spray Pump

The high pressure design reduces installation costs and provides extended life at reduced pressure. The combination of different cartridges in double and triple pumps allows low flow at high pressure and high flow at lower pressure. This is the intelligent way to optimize your circuit design. The pump also allows a very fast pressure cycle change with a very precise flow repeatability.

Markets:
• Mobile
• Agriculture
• Marine
• Military

Features/Benefits:
• Decreased Energy Consumption : Reduced heat generation and speeds down to 400 RPM at full pressure are supported by the high mechanical and volumetric efficiency, which is typically 94%.

• Reduced Noise Level : The T6*M series is designed to reach the lowest noise level in the smallest envelope, supported by its wide speed range capability, combined with large size cartridge displacements.

• Longer Lifetime : Parker's proven double lip vane approach increases the resistance to particle contamination. The low ripple pressure ± 2 bar reduces piping noise and increases protection of other components in the circuit.

The T6 series vane pump perfectly replace the original denison pump.

Match vane pump: T6C, T6D, T6E, T6CC, T6DC, T6EC,T6ED,T6DCC,T6DCCS,T6EDC,T6EDCS
