Place of Origin: | China |
Brand Name: | BLINCE |
Certification: | ISO9001:2008 |
Model Number: | Hydraulic radial piston motor |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton or wood case |
Delivery Time: | 15-20days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 3000pcs/month |
Shaft: | Splined Key, Parallel Key | Warranty: | One Year |
---|---|---|---|
Material: | Cast Iron | Structure: | Radial Piston |
Series: | Low Speed Big Torque | Motor Power: | Hydraulic Oil |
Characteristics: | Large Torque, Low Noise | ||
High Light: | radial hydraulic motor,hydraulic piston motor |

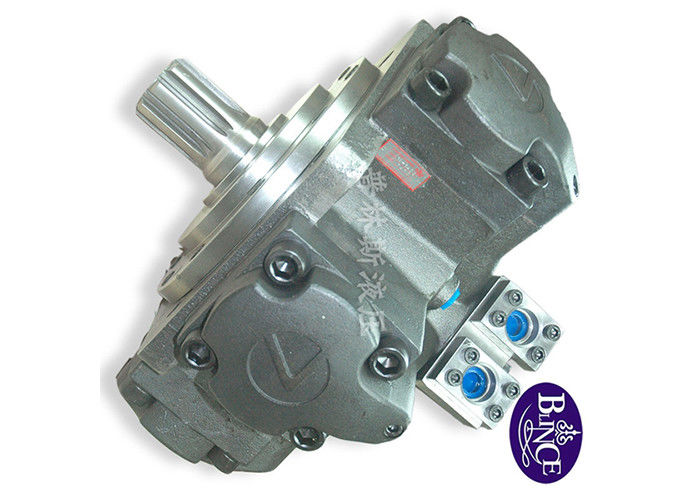

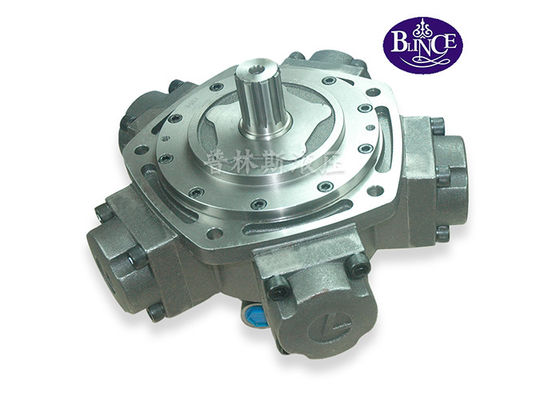

Large Torque Hydraulic Motor NHM 2-125 , 2-280 Radial Piston Hydraulic Motor for Thick Machine
Radial piston hydraulic motor for screw push machine
BLINCE brand in 13 years successfully settled in the industrial brand mall, the production of radial piston hydraulic motor extrusion molding, the surface is bright black, more anti - wear, corrosion resistance, high temperature. The use of Taiwan NAK oil seal is not easy to leak oil.
This is fixed displacement hydraulic radial piston motor. Our motor range varies from 63cc/rev to 7122 cm3/rev displacement.
Main features of the motors are as follows:
1. HIGH STARTING TORQUE
High starting torque efficiencies at high pressures
Less energy wastage and heat generation, fuel consumption reduction especially with frequent stopstart work cycles
Enables large obstacles and steep slopes to be overcome easily
2. WIDE SPEED RANGE
Wide specific speed ranges
Good low and high speed characteristics
Model | Displacement | Pressure | Torque | Speed range | ||
Rated | Max | Rated | N.m/Mpa | |||
LD 11-700 | 707 | 25 | 32 | 2612 | 104 | 4-400 |
LD 11-800 | 784 | 25 | 32 | 2899 | 116 | 4-400 |
LD 11-900 | 894 | 25 | 32 | 3306 | 132 | 4-400 |
LD 11-1000 | 981 | 20 | 25 | 2902 | 145 | 3-320 |
LD 11-1100 | 1104 | 20 | 25 | 3265 | 163 | 3-320 |
LD 11-1200 | 1234 | 16 | 20 | 2929 | 182 | 3-320 |
LD 11-1300 | 1301 | 16 | 20 | 3079 | 192 | 3-250 |
