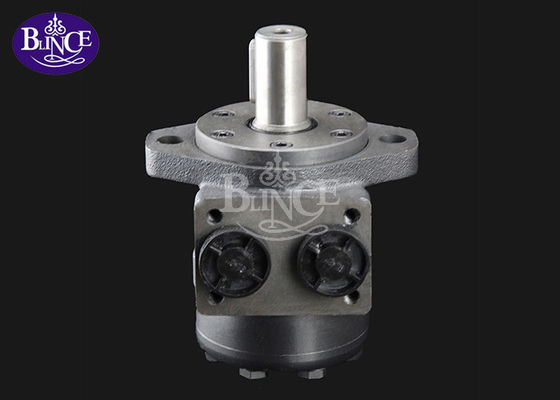

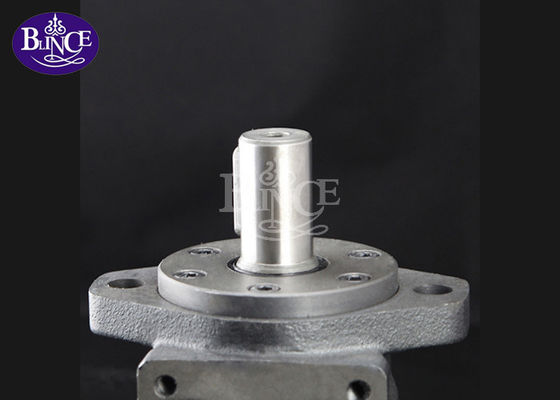

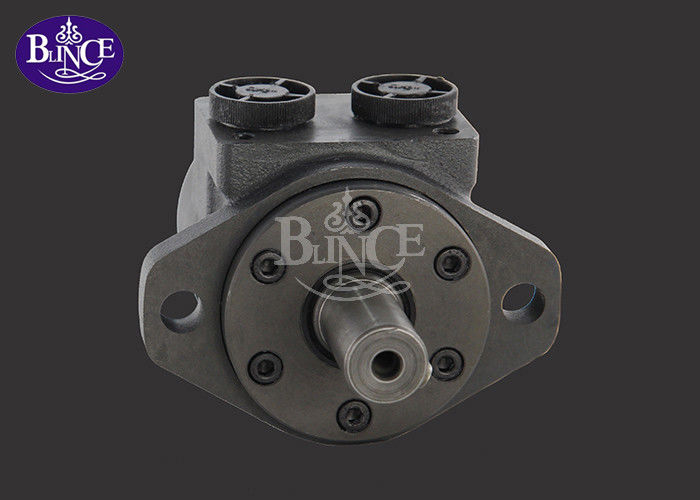

Blince Hidromotor DH/OZ Series Hydraulic Winch Motor , Orbit Hydraulic Motor For Cotton Harvester

Blince Hidromotor DH/OZ Series Hydraulic Winch Motor , Orbit Hydraulic Motor For Cotton Harvester

    • Blince Hidromotor DH/OZ Series Hydraulic Winch Motor , Orbit Hydraulic Motor For Cotton Harvester
    • Blince Hidromotor DH/OZ Series Hydraulic Winch Motor , Orbit Hydraulic Motor For Cotton Harvester
    • Blince Hidromotor DH/OZ Series Hydraulic Winch Motor , Orbit Hydraulic Motor For Cotton Harvester
  • Blince Hidromotor DH/OZ Series Hydraulic Winch Motor , Orbit Hydraulic Motor For Cotton Harvester

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OZ hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Displacement: 36 ~400cc/rev Speed: 104~1081rpm
    Torque: 51~392n.m Power: 3.4~5.2kw
    Material: Cast Iron Warranty: One Year
    Apperance: Phosphating
    High Light:

    ramsey hydraulic winch motor

    ,

    parker winch motor

    Blince hidromotor DH/OZ series motor pump , orbit hydraulic motor for cotton harvester



    OZ series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the gerotor gear set design and provide compact volume, high power and low weight. It can be replaced danfoss DH series orbit motor.



    Characteristic features:

    1. Advanced manufacturing devices for the gerotor gear set, which provide small volume, high efficiency and long life.

    2.Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

    3. Advanced construction design, high power and low weight.

    4. Application: cotton harvester



    code

    Displacement

    (cm/rem)

    Max.speed

    (rpm)

    Max.torque

    (N.m)

    Max.output

    (kw)

    Max pressure

    (MPa)

    Max.oil

    Flow(L/min)

        cont. cont. int. cont. int. cont. int. cont.
    OZ36 37 1081 51 68 5.2 8.6 10.5 14 40
    OZ50 51.7 774 73 96 5.2 8.6 10.5 14 40
    OZ80 77.7 515 106 143 5.2 8.6 10.5 14 40
    OZ100 96.2 416 140 178 5.2 8.6 10.5 14 40
    OZ125 117.9 339 162 218 5.2 8.6 10.5 14 40
    OZ160 155.5 257 216 288 5.2 8.6 10.5 14 40
    OZ200 189.9 211 264 351 5.2 8.6 10.5 14 40
    OZ250 231 173 281 351 4.6 7 9 11.5 40
    OZ315 311.7 128 312 433 3.4 5.8 7 10.5 40
    OZ400 386.2 104 392 582 3.4 5.8 7 10.5 40
