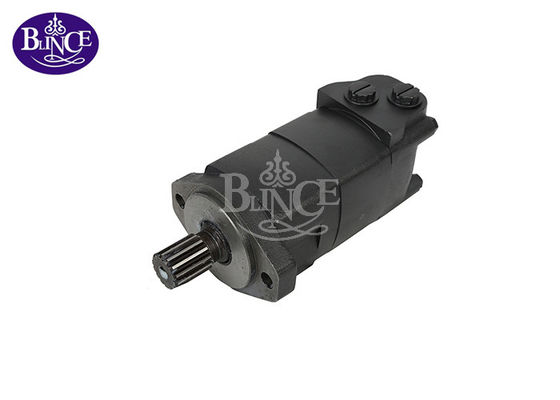

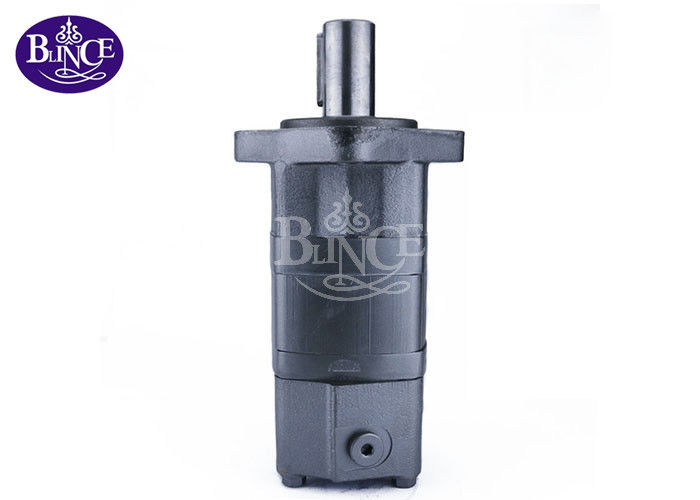

BMK2 Disc Valve Gerotor Hydraulic Motor Char lynn 2000 Series Replacement

BMK2 Disc Valve Gerotor Hydraulic Motor Char lynn 2000 Series Replacement

    • BMK2 Disc Valve  Gerotor Hydraulic Motor Char lynn   2000 Series  Replacement
    • BMK2 Disc Valve  Gerotor Hydraulic Motor Char lynn   2000 Series  Replacement
  • BMK2 Disc Valve  Gerotor Hydraulic Motor Char lynn   2000 Series  Replacement

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMK2 2K series hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: Western Union, L/C, T/T, Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Material: Cast Iron Warranty: One Year
    Apperance: Phosphating Type: Orbital Motor
    Usage: Hydraulic Oil Application: Agricultural / Construction Machine
    Displacement: 65-485cc/rev
    High Light:

    hydraulic gear motor

    ,

    small hydraulic motors

    Gerotor Hydraulic Motor BMK2 Disc Valve Motor Replace Char-lynn Motor 2000 Series



    Blince OMK2 type Hydraulic motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.



    *Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.



    *The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The case can offers capacities of high pressure and high torque in the wide of applications.



    * Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.





    Main Specifications:
    Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
    65 80 100 125 160 200 250 315 400 475
    Geometric displacement
    (cm3 /rev.)
    65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
    Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
    int. 990 980 924 720 713 577 462 365 287 230
    Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
    int. 245 345 445 560 570 665 820 885 925 930
    Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
    int. 27.5 31 31 31 26 26 26 24 17 14
    peak 31 31 31 31 31 31 31 31 20.5 17
    Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
    int. 65 80 95 95 115 115 115 115 115 115
    Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.
