| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMV / BMV 315 - 1000 hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union, L/C, Paypal |
| Supply Ability: | 3000pcs/month |
| Material: | Cast Iron | Flange: | Two Kinds Square Flange |
|---|---|---|---|
| Shaft: | Cylinder, Spline, Tapered | Type: | Gerotor Motor/ Orbit Motor |
| Market: | Global | Warranty: | One Year |
| Package: | Standard Export Package | Displacement: | 333-990mL/rev |
| Apperance: | Phosphating Or As You Required | ||
| High Light: | geroler hydraulic motor,small hydraulic motors |
||

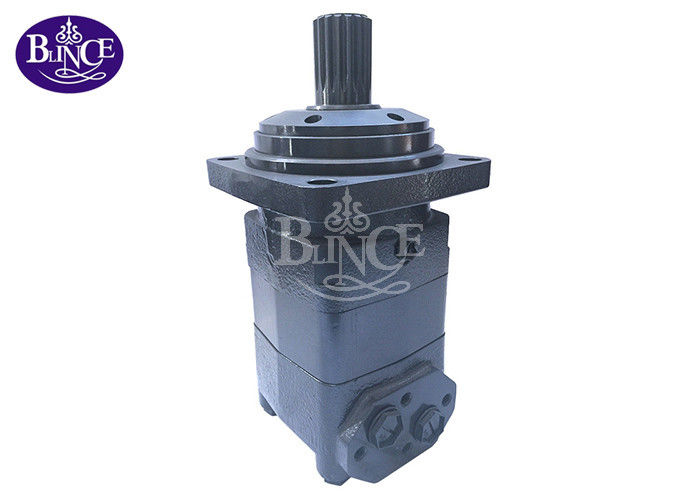

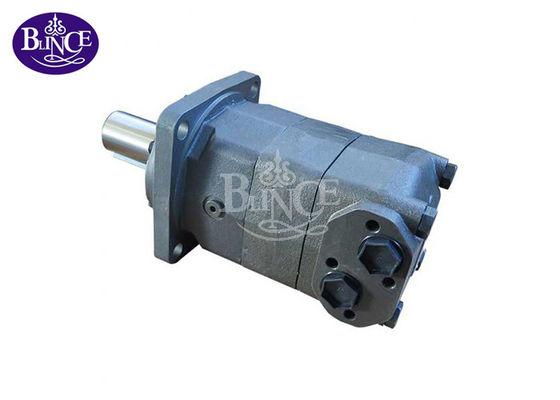

Large Displacement Gerotor Hydraulic Motor OMV 315 - 1000
For Heavy Duty Construction Machinery
Blince OMV motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications
Displacement: OMV 315, 400, 500, 630, 800, 1000
Flange:
4: 4-Ø18 Square-flangeØ200, pilot Ø160×11
W: 4-Ø18 Wheel-flange Ø224,pilot Ø180×10
Shaft:
A: Shaft Ø50 , parallel key 14×9×70
BD: Shaft Ø53.975, splined key 16-DP8/16
B: Shaft Ø53.975, splined key 16-DP8/16
C: Shaft Ø57.15, parallel key 12.7×12.7×57.15
T: Cone shaft Ø60, parallel key 16×10×32
T1: Cone shaft Ø60, parallel key 14.308×14.308×50.8
Ports and drain port:
D: G1 Manifold 4×M12, G1/4
M: M33×2 Manifold 4×M12, M14×1.5
S: 1-5/16-12UN, 9/16-18UNF
G: G1,G1/4
M5: M33×2, M14×1.5
S1: 1-5/16-12UN(18),7/16-20UNF(12)
Omv hydraulic motor detail model and data sheet
| Type |
OMV 315 |
OMV 400
|
OMV 500 |
OMV 630 |
OMV 800 |
OMV 1000 |
|
| Displacement (cc/rev) | 333 | 419 | 518 | 666 | 801 | 990 | |
|
Max torque (n.m) |
cont | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
|
Max pressure (Mpa) |
cont | 20 | 20 | 20 | 18 | 16 | 14 |
| int | 24 | 24 | 24 | 21 | 18 | 16 | |
|
Max speed rate (rpm) |
cont | 510 | 500 | 400 | 320 | 250 | 200 |
| int | 630 | 600 | 480 | 380 | 300 | 240 | |
|
Max flow (L/min) |
cont | 160 | 200 | 200 | 200 | 200 | 200 |
| int | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight(kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
We also provide replacement Danfoss Hydraulic motor
OMM Series Gerotor Hydraulic Motor
OMP Series Gerotor Hydraulic Motor
OMR Series Gerotor Hydraulic Motor
OMS Series Gerotor Hydraulic Motor
OMT Series Gerotor Hydraulic Motor
OMV Series Gerotor Hydraulic Motor
OMH Series Gerotor Hydraulic Motor
and Eaton Char-lynn J 129 series, H 101 series, S 103 series, 2000 104 series, 6000 series 112 113 114 orbit motor.
If you are interested in our products, please contact us to get more information.
