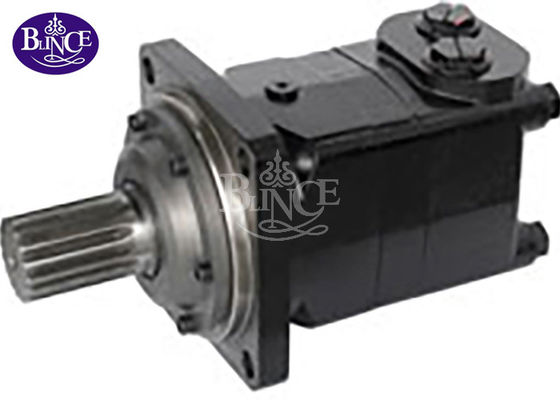

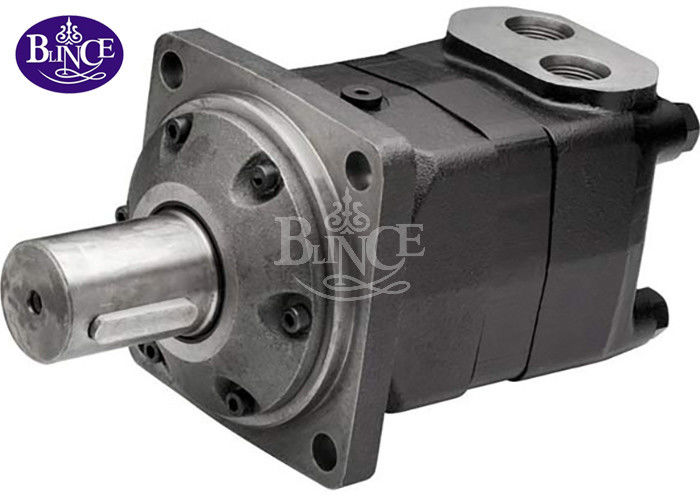

Danfoss OMV800 / BMV800 151B3104 Gerotor Hydraulic Motor ∅50mm Shaft For Mining Equipment

Danfoss OMV800 / BMV800 151B3104 Gerotor Hydraulic Motor ∅50mm Shaft For Mining Equipment

    • Danfoss OMV800 / BMV800 151B3104 Gerotor Hydraulic Motor ∅50mm Shaft For Mining Equipment
    • Danfoss OMV800 / BMV800 151B3104 Gerotor Hydraulic Motor ∅50mm Shaft For Mining Equipment
  • Danfoss OMV800 / BMV800 151B3104 Gerotor Hydraulic Motor ∅50mm Shaft For Mining Equipment

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: OMV 800 hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union, L/C, Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Displacement: 801rev Material: Cast Iron
    Speed: 250rpm Flange: Two Kinds Square Flange
    Shaft: Cylinder, Spline, Tapered Torque: 1880n.m
    Color: Black
    High Light:

    hydraulic gear motor

    ,

    small hydraulic motors

    Danfoss OMV800 / BMV800 151B3104 Gerotor Hydraulic Motor

    ∅50mm Shaft For Mining Equipment

    Blince OMV series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications



    UNIQUE FEATURE

    1. high pressure of Germany shaft seal

    2. high load and large torque
    3.large shaft radial force bearing

    4.applied in (sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.



    Blince omv hydraulic motor detail model and data sheet



    Type

    OMV

    315

    OMV

    400



    OMV

    500

    OMV

    630

    OMV

    800

    OMV

    1000

    Displacement (cc/rev) 333 419 518 666 801 990

    Max torque

    (n.m)

    cont 920 1180 1460 1660 1880 2015
      int 1110 1410 1760 1940 2110 2280

    Max pressure

    (Mpa)

    cont 20 20 20 18 16 14
      int 24 24 24 21 18 16

    Max speed rate

    (rpm)

    cont 510 500 400 320 250 200
      int 630 600 480 380 300 240

    Max flow

    (L/min)

    cont 160 200 200 200 200 200
      int 200 240 240 240 240 240
    Weight(kg) 31.8 32.6 33.5 34.9 36.5 38.6



    We also provide replacement Danfoss Hydraulic motor OMM, OMP, OMR, OZ, OK, OMH, OMS, OMT, OMV, OMK6 and Eaton Char-lynn J 129 series, H 101 series, S 103 series, 2000 104 series, 6000 series 112 113 114 orbit motor.



    If you are interested in our products, please contact us to get more information.
