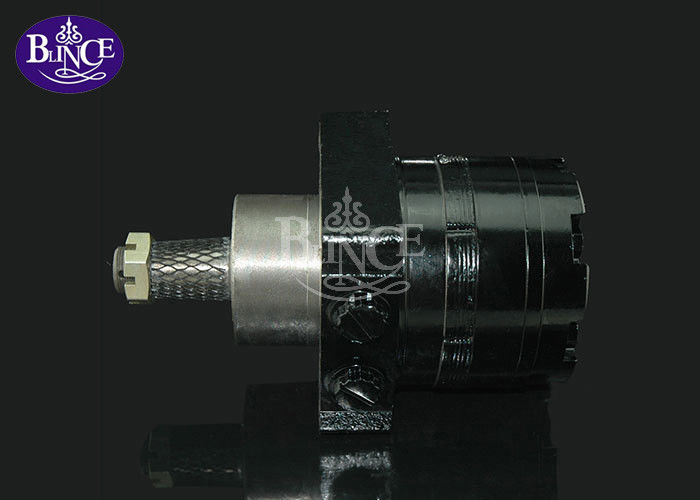

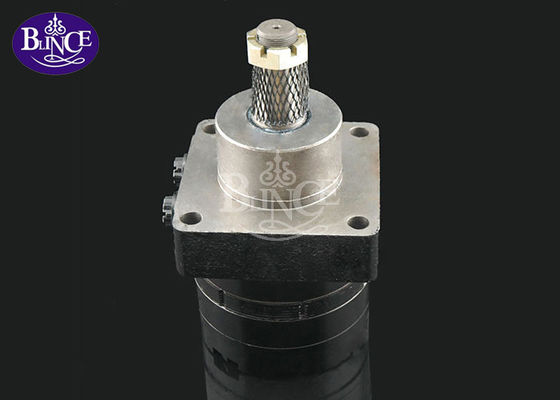

OMER / BMER High Speed Hydraulic Wheel Motor For Construction Hydraulic Spare Parts

OMER / BMER High Speed Hydraulic Wheel Motor For Construction Hydraulic Spare Parts

    • OMER / BMER High Speed Hydraulic Wheel Motor For Construction Hydraulic Spare Parts
    • OMER / BMER High Speed Hydraulic Wheel Motor For Construction Hydraulic Spare Parts
  • OMER / BMER High Speed Hydraulic Wheel Motor For Construction Hydraulic Spare Parts

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: BMER hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Warranty: One Year Market: Global
    Application: Road Sweeper / Heavy Machine Displacement: 118-745cc/rev
    Output: 8-18kw Max Torque: 325-1085n.m
    Flange: Wheel Mount Shaft: Taperd Shaft
    High Light:

    hydraulic wheel drive motor

    ,

    hydro wheel motor

    OMER / BMER Hydraulic Wheel Motor China Supplier For Construction Hydraulic Spare Parts



    OMER / BMER White RE Parker TG series Gerotor Hydraulic wheel motor adapts the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.



    OMER motor Characteristic:
    * Advanced manufacturing devices for the Geroler gear set, which use low pressure of
    start-up, provide smooth and reliable operation and high efficiency.
    * The output shaft adapts in needle roller bearings that permit high axial and radial forces.
    The case can offers capacities of high pressure and high torque in the wide of applications.
    * Advanced design in high speed distribution flow, which can automatically compensate in
    operating with high volume efficiency and long life , provide smooth and reliable operation.
    * Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than
    shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high
    volume efficiencies and can run very smoothly at low speed, gear box not required.



    Type BMER
    125
    BMER
    160
    BMER
    200
    BMER
    230
    BMER
    250
    BMER
    300
    BMER
    350
    BMER
    375
    BMER
    475
    BMER
    540
    BMER
    750
    Geometric
    displacemen(cm3/rev.)
    118 156 196 228 257 296 345 371 462 540 745
    Max.speed(rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
    int. 490 470 425 365 350 315 270 240 195 170 120
    Max.torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
    int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
    peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
    Max.output(kW) cont. 12 15 15.5 16 17.5 18 17.5 16.5 14.5 11.5 8
    int. 14 17.5 18 19 20 21 20 19 16.5 15 10
    Max. pressure
    drop(MPa)
    cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
    int. 24 24 24 24 24 24 24 24 19 17.5 12
    peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
    Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
    int. 60 75 85 85 90 95 95 90 90 90 90
