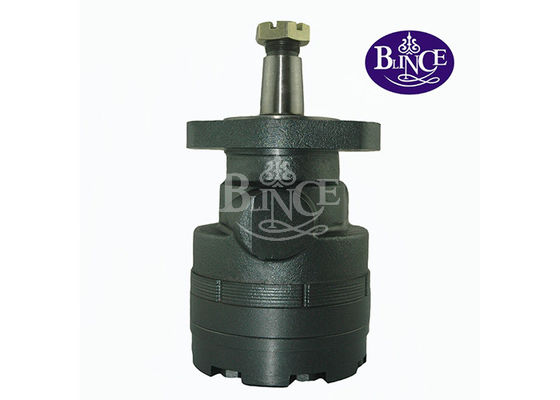

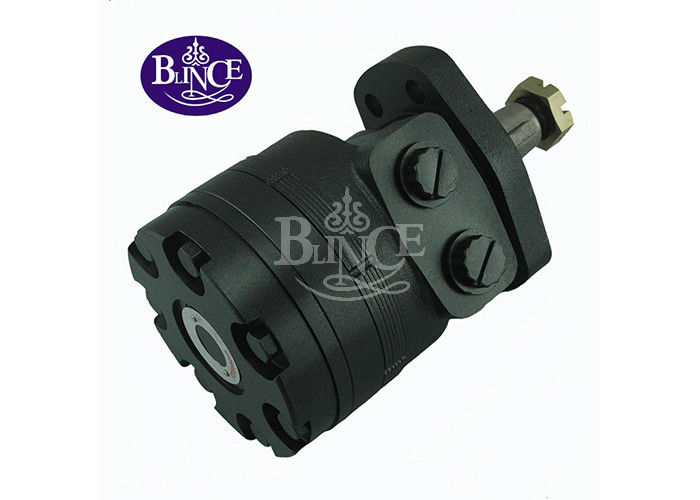

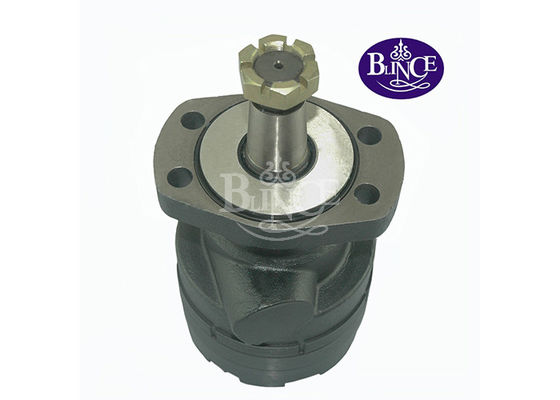

Black Gerotor Hydraulic Motor BMER 750 Replace TG / RE Series For Wood Chippers

Black Gerotor Hydraulic Motor BMER 750 Replace TG / RE Series For Wood Chippers

    • Black   Gerotor Hydraulic Motor BMER 750 Replace TG / RE Series For Wood Chippers
    • Black   Gerotor Hydraulic Motor BMER 750 Replace TG / RE Series For Wood Chippers
    • Black   Gerotor Hydraulic Motor BMER 750 Replace TG / RE Series For Wood Chippers
  • Black   Gerotor Hydraulic Motor BMER 750 Replace TG / RE Series For Wood Chippers

    Product Details:

    Place of Origin: China
    Brand Name: BLINCE
    Certification: ISO9001:2008
    Model Number: BMER 750 hydraulic motor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton or wood case
    Delivery Time: 15-20days
    Payment Terms: T/T, Western Union
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Torque: 1050n.m Power: 8kw
    Shaft: Magneto Mount 4hole Warranty: One Year
    Market: Global Application: Road Sweeper
    Displacement: 745cc/rev
    High Light:

    hydraulic gear motor

    ,

    small hydraulic motors

    Black Color Gerotor Hydraulic Motor BMER 750 Replace TG / RE Series For Wood Chippers



           We are offering an exclusive range of Gerotor Motor to valued clients. Our engineers develop this range using optimum quality material and modern equipment. Furthermore, our products are highly appreciated for long-lasting nature. Quality tested on various constraints, these products promise international standards. Additionally, we are capable in making these products available in bulk quantity and in time.



    OMER TG / RE series Hydraulic motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.



    OMER Hydraulic motor Characteristic:
    * Advanced manufacturing devices for the Geroler gear set, which use low pressure of
    start-up, provide smooth and reliable operation and high efficiency.
    * The output shaft adapts in needle roller bearings that permit high axial and radial forces.
    The case can offers capacities of high pressure and high torque in the wide of applications.
    * Advanced design in high speed distribution flow, which can automatically compensate in
    operating with high volume efficiency and long life , provide smooth and reliable operation.
    * Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than
    shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high
    volume efficiencies and can run very smoothly at low speed, gear box not required.



    Type BMER
    125
    BMER
    160
    BMER
    200
    BMER
    230
    BMER
    250
    BMER
    300
    BMER
    350
    BMER
    375
    BMER
    475
    BMER
    540
    BMER
    750
    Geometric
    displacemen(cm3/rev.)
    118 156 196 228 257 296 345 371 462 540 745
    Max.speed(rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
    int. 490 470 425 365 350 315 270 240 195 170 120
    Max.torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
    int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
    peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
    Max.output(kW) cont. 12 15 15.5 16 17.5 18 17.5 16.5 14.5 11.5 8
    int. 14 17.5 18 19 20 21 20 19 16.5 15 10
    Max. pressure
    drop(MPa)
    cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
    int. 24 24 24 24 24 24 24 24 19 17.5 12
    peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
    Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
    int. 60 75 85 85 90 95 95 90 90 90 90
