| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMH hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union, , L/C,Paypal |
| Supply Ability: | 3000pcs/month |
| Displacement: | 203.2-489.2mL/rev | Speed: | 155-366rpm |
|---|---|---|---|
| Torque: | 510-830 N.m | Flow: | 75L/min |
| Flange: | Square And Rhombus Flange | Warranty: | One Year |
| Usage: | Hydraulic Oil | Application: | Rotary Actuator/ Concrete Mixer |
| High Light: | omh 400 hydraulic motor,sauer hydraulic motor |
||

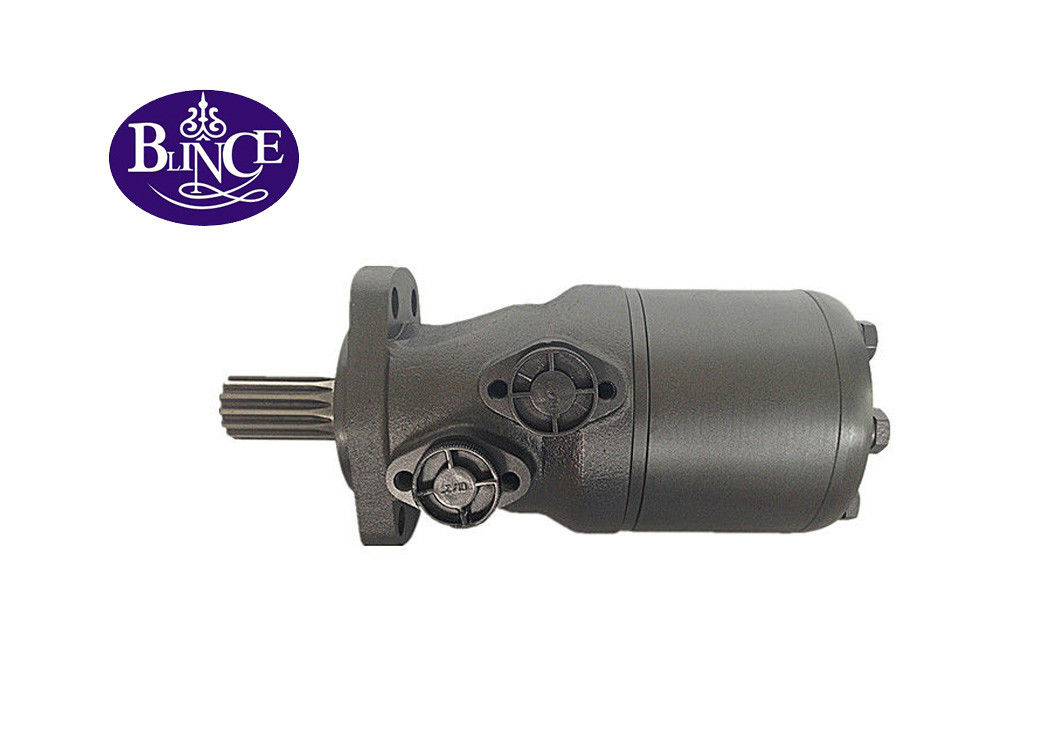

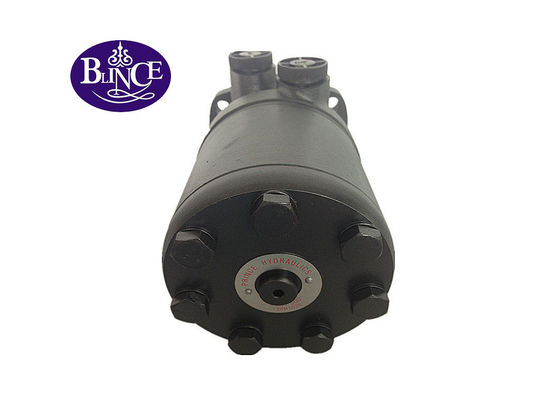

Hydraulic Orbit Motor OMH 200 / 250 / 315 / 400 / 500 , BMH hydromotor For Rotary Actuator
BMH series motor can widely use for construction equipment, the shaft (32mm and 35mm) is the most suitable size. The direction of shaft rotation and speed can be controlled easily and smoothly. And has a greater lateral load capacity and lon life.
Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
*Special design in the driver-linker and prolong operating life.
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation.
| Type |
OMH 200 |
OMH 250 |
OMH 315 |
OMH 400 |
OMH 500 |
|
| Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| inter | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| inter | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| inter | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| inter | 90 | 90 | 90 | 90 | 90 | |
|
Weight (kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
