| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | OMP 200 hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union, L/C, Paypal |
| Supply Ability: | 3000pc/month |
| Material: | Cast Iron | Displacement: | 314.5 Cc/rev |
|---|---|---|---|
| Warranty: | One Year | Pressure: | 9Mpa |
| Color: | Black | Motor Shaft: | Straight, Splined And Tapered |
| High Light: | ramsey hydraulic winch motor,parker winch motor |
||

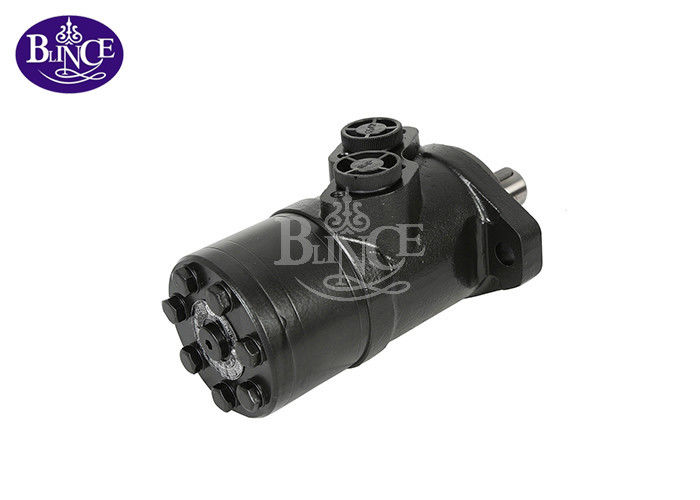

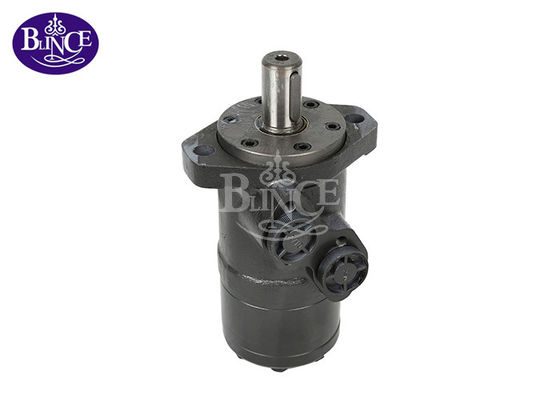

Bmp 200 Hydraulic Motor , Long Life Hydraulic Motor For Industrial Machinery
Bmp 200 hydraulic motor , long life hydraulic motor for industrial machinery, OMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
Characteristic:
1. Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
2. Seal can bear high pressure of back and the motor can be used in parallel or in series.
3. Design in the driver-linker and prolong operating life.
| type |
OMP OMPH 36 |
OMP OMPH 50 |
OMP OMPH 80 |
OMP OMPH 100 |
OMP OMPH 125 |
OMP OMPH 160 |
OMP OMPH 200 |
OMP OMPH 250 |
OMP OMPH 315 |
OMP OMPH 400 |
OMP OMPH 500 |
|
| Geometric displacement | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max.speed.(rpm) | con. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max.torque(N.m | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 383 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| Max.output(KW) | cont. | 8.0 | 10.0 | 10.0 | 11.0 | 10.0 | 10.0 | 10.0 | 8.5 | 7.0 | 6.0 | 5.0 |
| int | 11.5 | 12.0 | 12.0 | 13.0 | 12.0 | 12.0 | 12.0 | 10.5 | 8.5 | 7.0 | 6.0 | |
|
Max.pressure Drop(Mpa) |
cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| Max.flow(L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Our motors adapt high quality cast iron, high technology machinery and testing machine to produce.
Every motor must be tested before dispatched to our customers. Most our customers are satisfied
with motor, because they are high efficiency, long life and low noise.
